Linear motion systems timing Belt Compact module 100x100 mm

Send enquiry

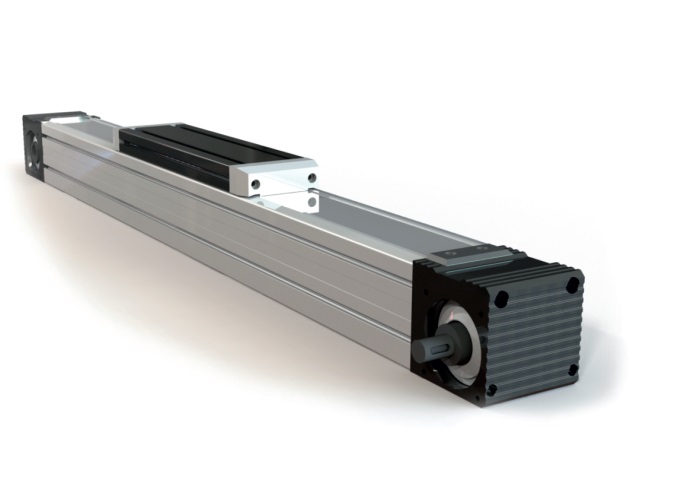

Linear motion systems timing Belt Compact module 100x100 mm
Product code: 5.3.03.100100.2.03.2
When ordering please specify the product code and quantity.
Product indexes see. Annexes
  • Use to linear motion systems;
  • Drive - Timing belt and pulley;
  • Body: 100x100 profile (AL 6063) T5;
  • Max speed: 5 m/sec;
  • Pitch: 192 mm;
  • Timing belt: 8M-F50 NFT coated;
  • Timing pulley: 8M-50 Z40;
  • Linear rail: 25' Linear Rail;
  • Linear block: 25' low-narrow linear block;
  • Belt tensile force: 3000 N;
  • Belt pitch: 5 mm;
  • Protection: 0,3x60 mm Metal sheet protection;
  • Positioning accuracy: 0,1 mm.
