Linear motion system Timing Belt module 38x50

Send enquiry

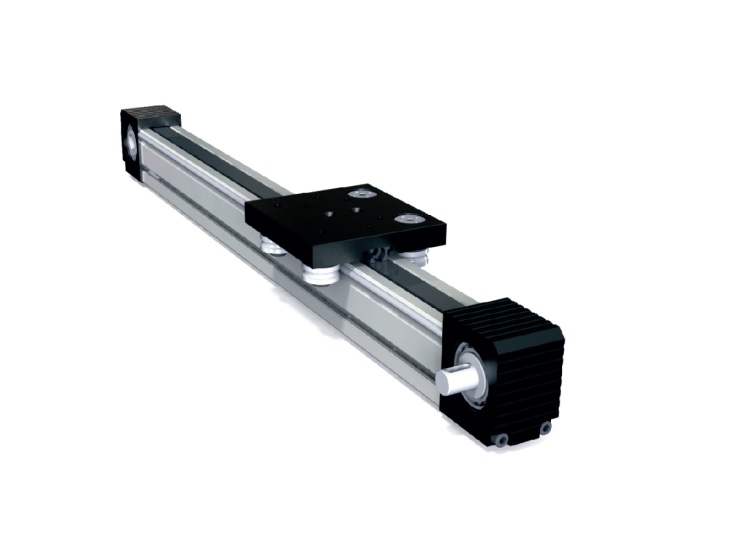

Linear motion system Timing Belt module (38x50)
When ordering please specify the product code:5.3.03.038050.1.01.2. and quantity. Product indexes see. Annexes
  • Use to linear motion systems
  • Drivea - Timing belt;
  • Body: 38x50 profile (AL 6063) T5;
  • Max speed: 3 m/sec;
  • Pitch: 105 mm;
  • Timing belt: 5M-15/16 steel cord;
  • Timming pulley: Z21-5M-16F;
  • Shaft: Ø6 Chrome Coated (20-33μm), Hardened, Cf53- H7;
  • Track roller bearing: LFR 50/8-6 - KDD;
  • Belt tensile force: 1500 N;
  • Belt pitch: 5 mm;
  • Positioning accuracy: 0,2 mm.
