Linear motion systems block timing belt module 12-20 mm

Send enquiry
Linear motion systems block timing belt module 12-20 mm
When ordering please specify the product code: 5.3.01.030082.1.02.2 or 5.3.01.030086.1.02.2  and quantity.
Product indexes see. Annexes.

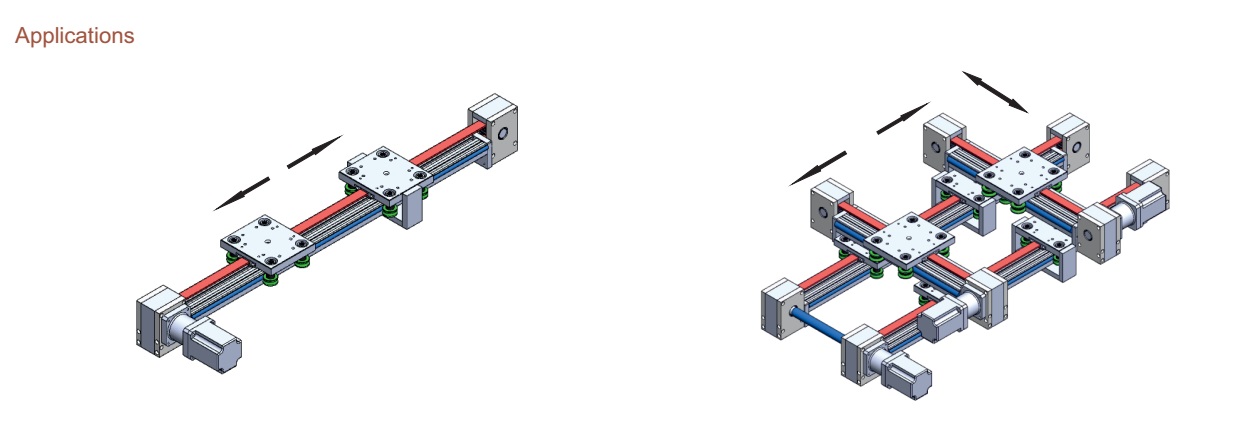

  • Use to linear motion systems;
  • Drive: Timing belt;
  • Body: 30x82 - 40x86 profile (AL 6063) T5;
  • Max speed: 5 m/sec;
  • Pitch: 200 mm;
  • Timing belt: 5M-30 steel cord PU;
  • Timing pulley: Z40-5M-30;
  • Shaft: Ø12-20 Chrome Coated (20-33μm), Hardened, Cf53- H7;
  • Track roller bearing: RV 201-12 KDD / RV 202-15 KDD;
  • Belt tensile force: 2000 N;
  • Belt pitch: 5 mm;
  • Positioning accuracy: 0,2 mm.
