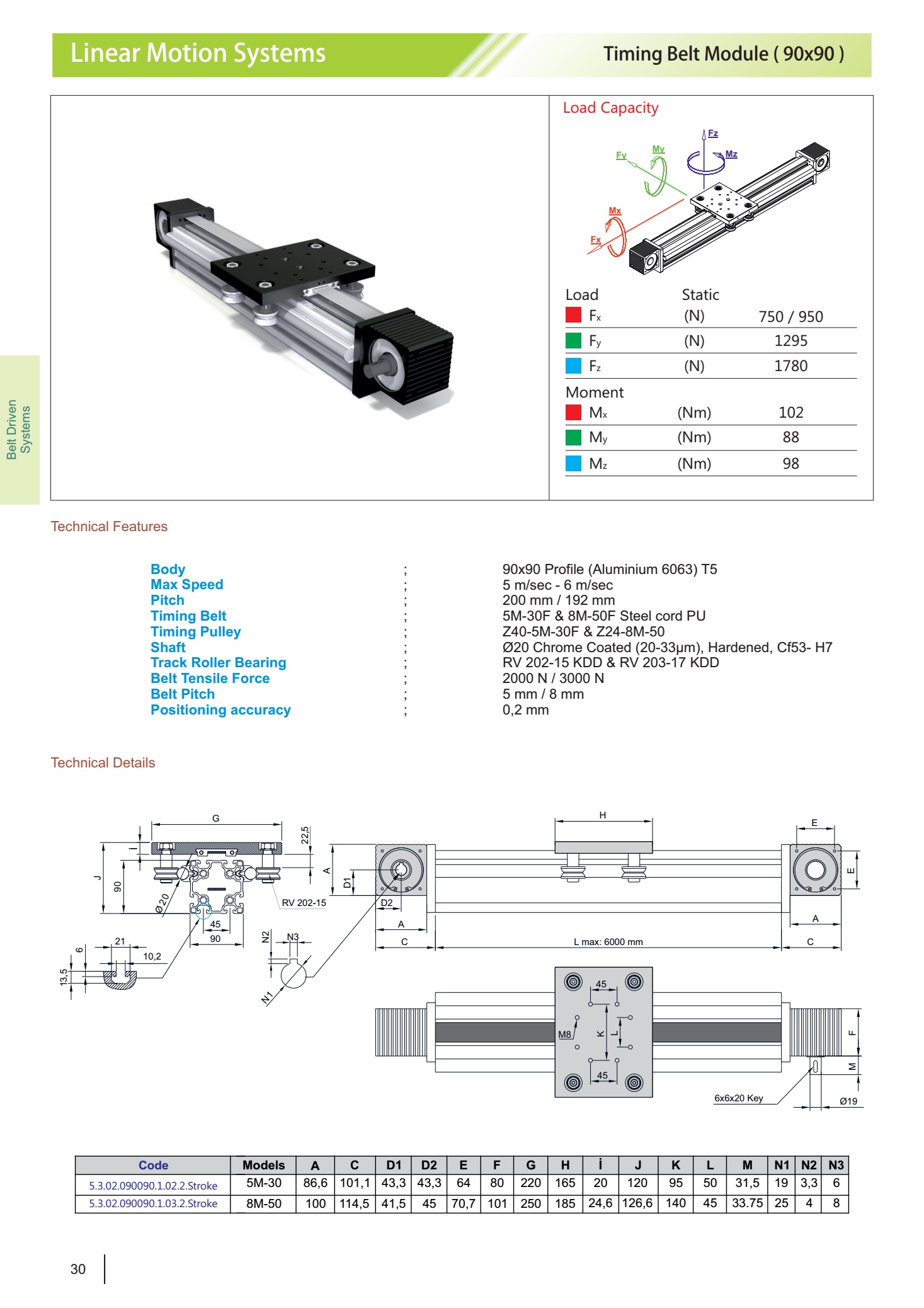

Linear motion system Timing Belt module 90x90

Send enquiry
Linear motion system Timing Belt module 90x90
When ordering please specify the product code:5.3.02.090090.1.02.2 or 5.3.02.090090.1.03.2 and quantity.
Product indexes see. Annexes.
  • Use to linear motion systems;
  • Drive - Timing belt;
  • Body: 90x90 profile (AL 6063) T5;
  • Max speed: 5-6 m/sec;
  • Pitch: 192-200 mm;
  • Timing belt: 5M-30F & 8M-50F Steel cord PU;
  • Timing pulley: Z40-5M-30F & Z24-8M-50;
  • Shaft: Ø20 Chrome Coated (20-33μm), Hardened, Cf53- H7;
  • Track roller bearing: RV 202-15 KDD & RV 203-17 KDD;
  • Belt tensile force: 2000-3000 N;
  • Belt pitch: 5-8 mm;
  • Positioning accuracy: 0,2 mm.
