Linear motion system Timing Belt module 90x180

Send enquiry
Linear motion system Timing Belt module 90x180
When ordering please specify the product code:5.3.02.090180.1.03.2 and quantity.
Product indexes see. Annexes.

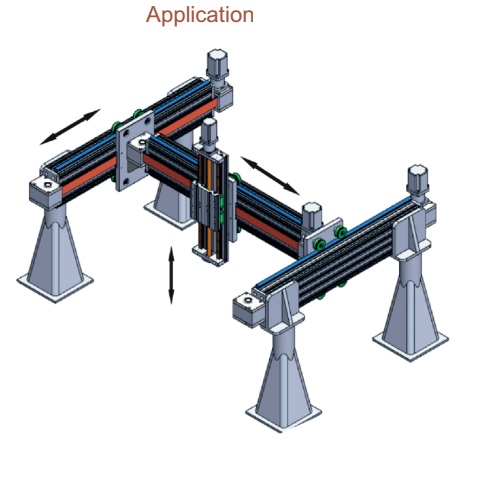

  • Use to linear motion systems;
  • Drive - Timing belt;
  • Body: 90x180 profile (AL 6063) T5;
  • Max speed: 6 m/sec;
  • Pitch: 192 mm;
  • Timing belt: 8M-50F Steel cord PU;
  • Timing pulley: Z24-8M-50F;
  • Shaft: Ø20 Chrome Coated (20-33μm), Hardened, Cf53- H7;
  • Track roller bearing: RV 203-175;
  • Belt tensile force: 3000 N;
  • Belt pitch: 8 mm;
  • Positioning accuracy: 0,2 mm.
