Standard Welded Universal Tied Expansion Joins
Standard Welded Universal Tied Expansion Joins. Axial expansion: ±15-30, lateral expansion: ±25-100 m
Documents
CHARACTERISTICS
Standard Welded Universal Tied Expansion Joins. Axial expansion: ±15-30, lateral expansion: ±25-100 m
- Two-way movements can be absorbed using the coupled expansion joints.
- Universally coupled equalizer connector consists of two spirals (bellows).
- The bellows are interconnected.
- There may also be intermediate pipe systems that can withstand the internal pressure due to the resulting traction.

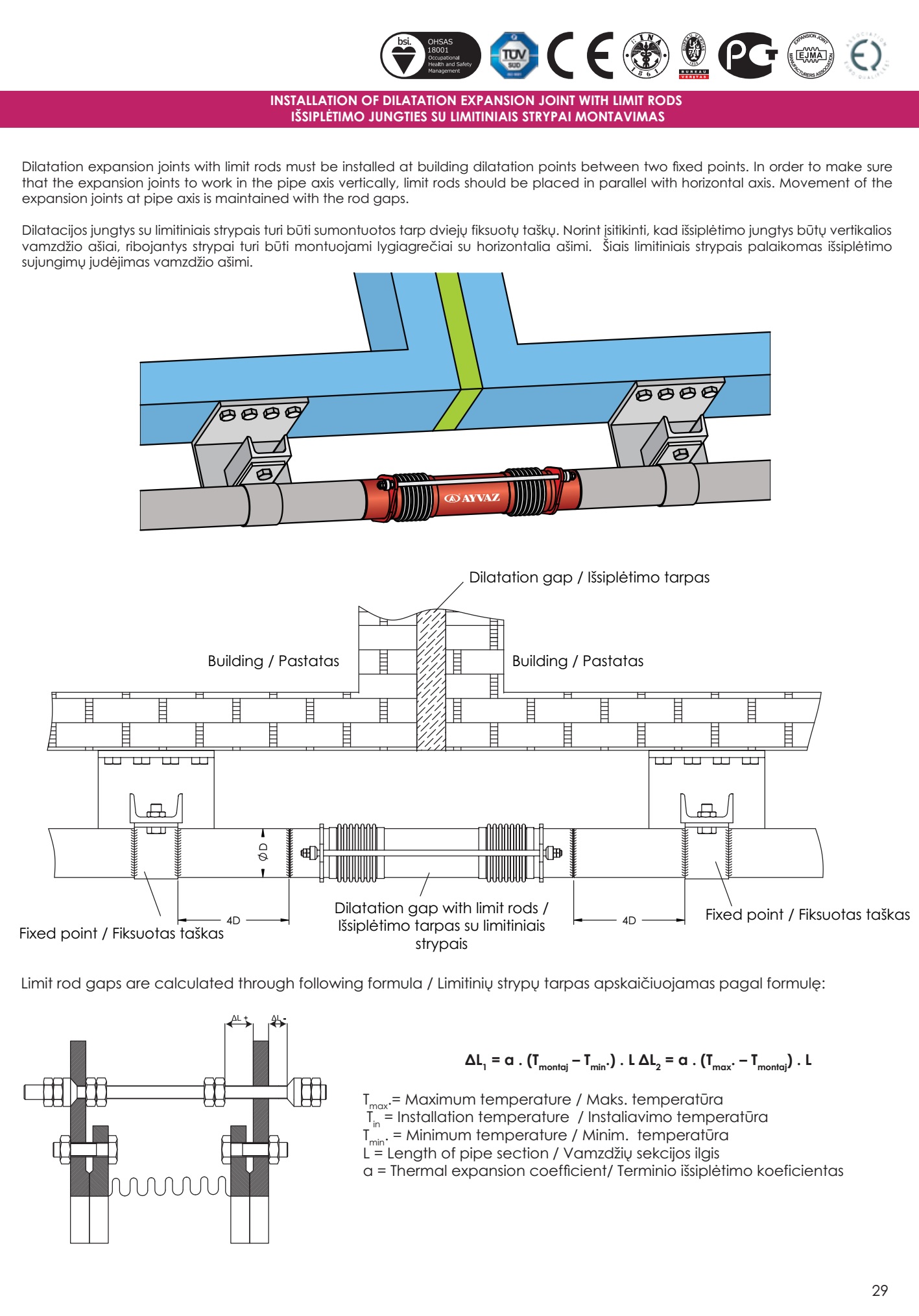

Motion absorption
- This type of expansion joints are used to absorb lateral movements in all planes.
- Due to the special position of the two mounting bars at 180 degrees, the expansion joints can simultaneously absorb lateral and angular deformations.
- The size of the lateral deformation depends on the number of bellows connections on each side of the expansion joint.
- This amount can also be increased by changing the length of the intermediate pipe.
- The studs help to avoid possible twisting forces.
Advantages of Universal Attached Expansion Joints
- Absorption of lateral movements in all planes;
- Easily absorbs large expansion forces;
- Little space;
- Protects against axial inaccuracies, improves system security.
Construction
- Bellow material: Stainelss Steel AISI 321 (order: 304, 316L, 316TI, 309);
- Connection types: welded;
- Intermediate pipe material: carbon steel St.37.2, other materials are ordered;
- Spun material: carbon steel St.37.2, other materials are ordered.
Working conditions
- Operating temperature: -80 ° C / + 600 ° C.
- Working pressure: 16 bar.
- Nominal diameter: DN25 - DN300.
