X-Pressed Expansion Joints with Fixed flange and Floating Flange on the other end
On order
X-Pressed Expansion Joints with Fixed flange and Floating Flange on the other end
Documents
CHARACTERISTICS

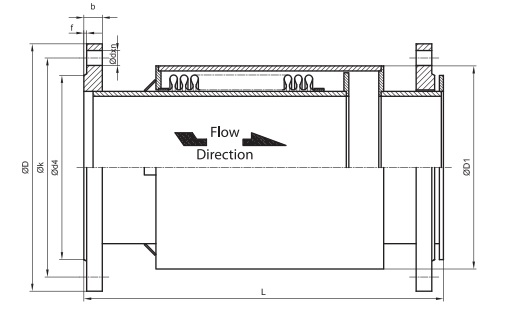

X-Pressed Expansion Joints with Fixed flange and Floating Flange on the other end
Standard versions

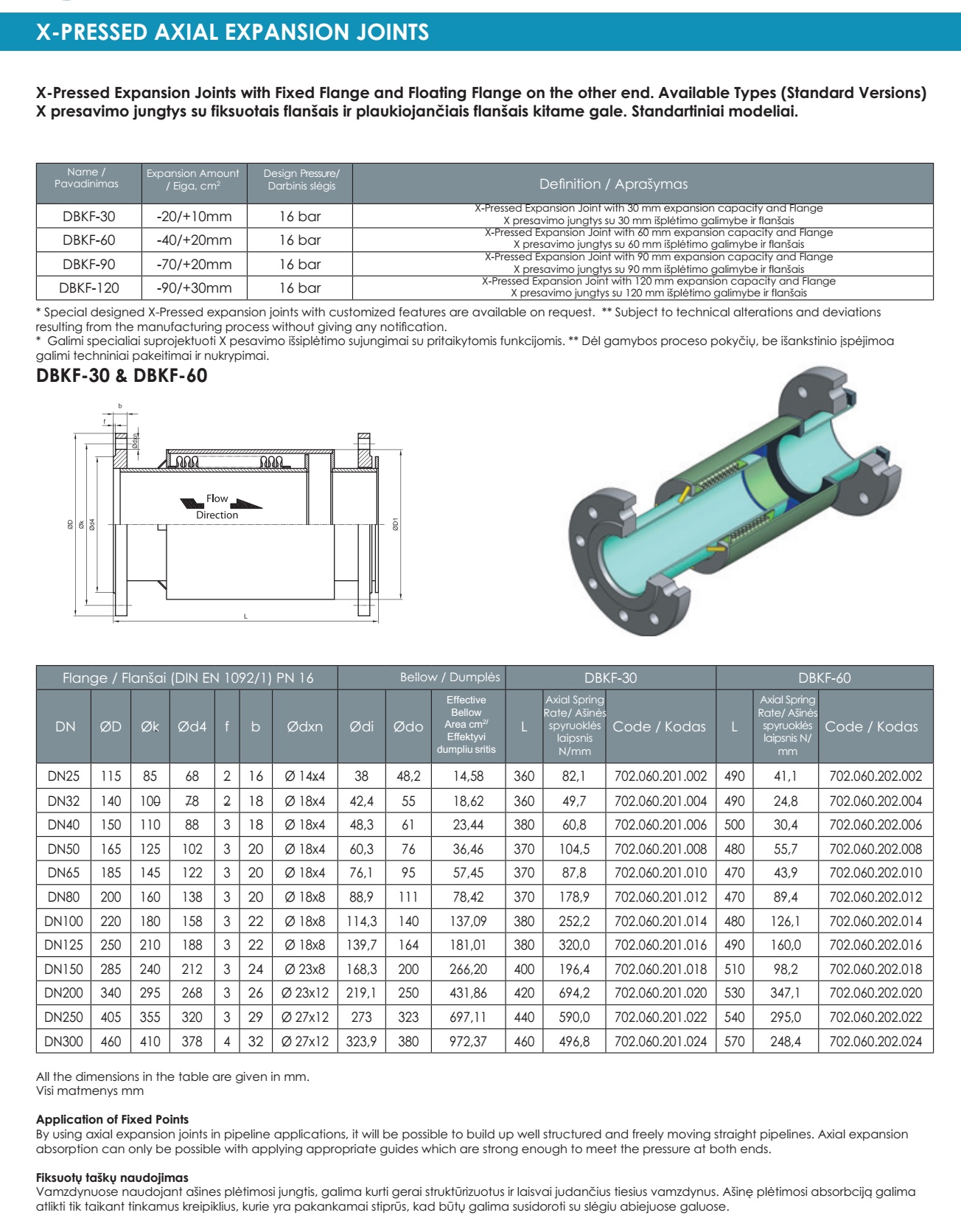

DBKF-30 (702.060.201.002-702.060.201.024);
DBFK-60 (702.060.202.002-702.060.202.024);
X-pressed axial expansion joints can only be compensated for by increasing the number of bobbin grooves.
- However, this increases the possibility of twisting.
- Using the inner sleeves can reduce the amount of torque, but also reduce the possibility of expansion joints.
- External pressure expansion joints are the most suitable solution for such cases.
Motion absorption
- X pressure expansion joints replace the direction of flow and transfer the pressure from the outside to the dumplings.
- Extremely compressed bellows resistance to high pressure and torque increases.
- This design allows you to safely compensate for large movements.
Advantages of X-Expansion Extensions
- Easily absorbs large expansion forces.
- Reducing the number of axial expansion joints saves time and cost.
- Minimum space.
- Protection against axial inaccuracies increases the security of the system.
- The use of internal guiding rings ensures a very stable structure of joints.
CONSTRUCTION
- Material for bellows: stainless steel AISI 321 (304, 316L, 316TI, 309);
- Pipe material: carbonic additive 37.2, other materials on request;
- Connector types: stationary and floating flanges and welding;
- Flange end material: carbon additive 37.2, other materials on request;
- Internal sleeves: stainless steel AISI 321 (304, 316L, 316TI, 309).
Working conditions:
- Operating temperature: -80 ° C / + 600 ° C;
- Working pressure: 16 bar;
- Nominal diameter: DN 25 - DN 300.
