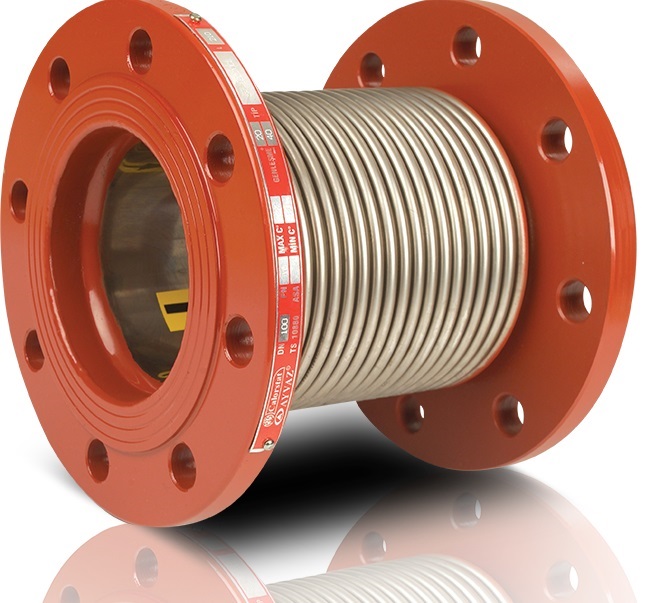

ElegaAxial expansion joints aim to absorb the axial expansions

Axial expansion joints aim to absorb the axial expansions

On order

Axial expansion joints aim to absorb the axial expansions

info@elega.lt Call

Documents

  • Download brochureFAILAS · 316 KBDownload

CHARACTERISTICS

Axial expansion joints aim to absorb the axial expansions

  • They do not change the direction of the flow;
  • Additional assemblage distance is not necessary;
  • Dividing the pipeline helps to prevent stress of lateral forces;
Movement Absorption
  • Axial shift and slight all-around movement of the expansion joint is possible.
  • Axial expansion joints with two bellows are used to absorb larger movements.
Advantages of Axial Expansion Joints
  • Easy to absorb the expansion movements.
  • No direction changes of the flow.
  • Minimum application area.
  • Possible lateral and angular expansion absorption by the additional bellows.
  • To provide a non-stressed area where the pressure is not too high such as pump and compressor applications.
  • Low application costs.
DESIGN / Structure
  • Bellow Material: Stainless Steel AISI 321(Opt. 304, 316L, 316TI, 309),
  • Connection Types: Fixed and Floating Flanged and Welded Ended,
  • Flange Material: Carbon Steel St.37.2 as standard, the material can be customised on request,
  • Inner Sleeve: Available in stainless steel AISI 321 (Opt. 304, 316L, 316TI, 309) on request,

Operation Conditions

  • Operating Temperature: -80°C/+600°C;
  • Operating Pressure:Can be produced with different pressure rates PN 2,5/6/16/25/40/64;
  • Nominal Diameters:DN 15 (1/2”) - DN 3800 (152”);
