30-60 mm Axial Expansion Joint with Welded End

Send enquiry

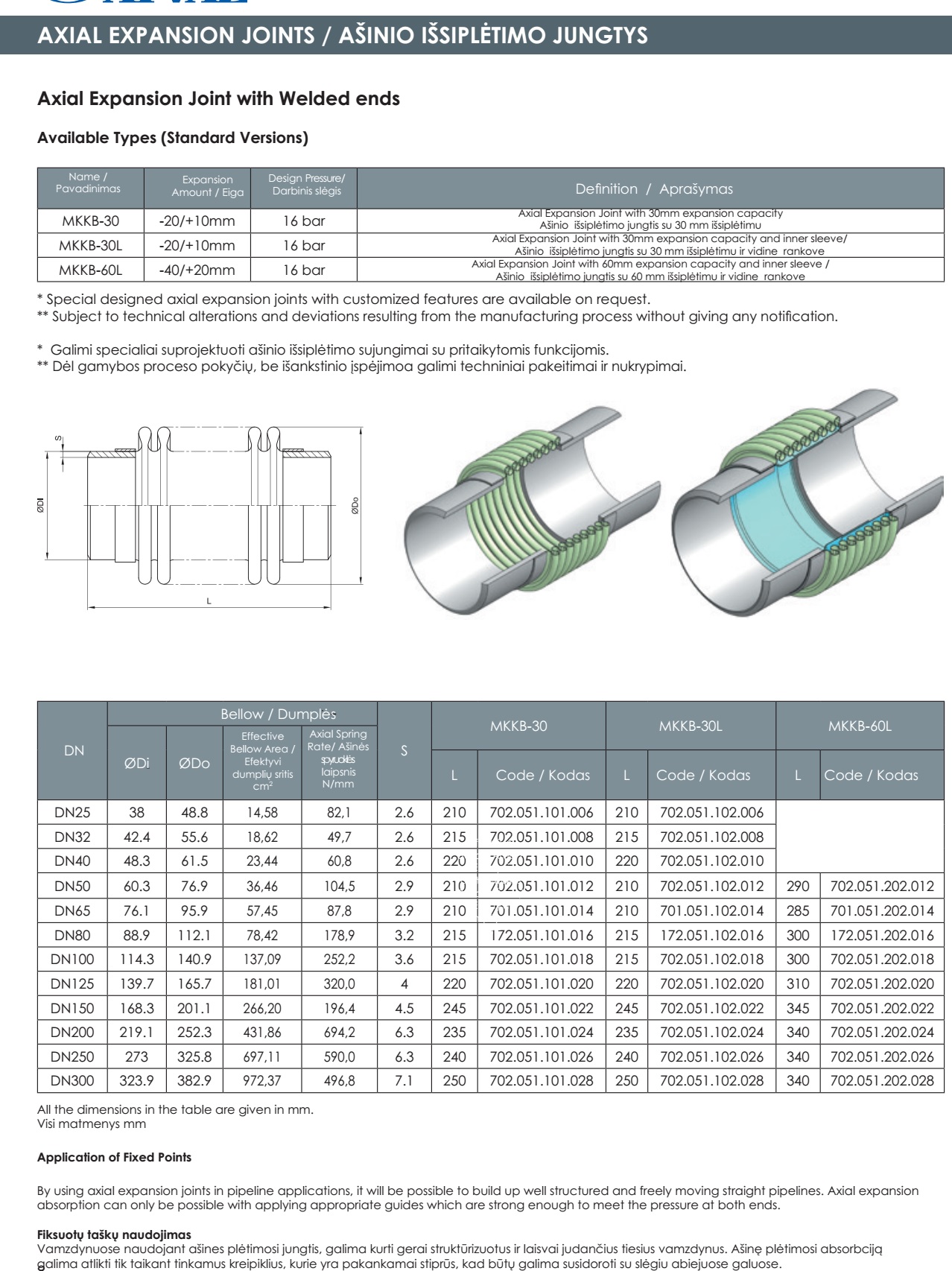

30-60 mm Axial Expansion Joint with Welded end
Art.:
MKKB-30L (702.051.102.006-702.051.102.028);
MKKB-60L (702.051.202.028-702.051.202.028).

Metall axial expansion joint
  • Expansion joints are used for thermal expansion, seismic displacement, vibration impacts sorbtion.
  • The use of axial expansion joints in pipelines allows the creation of well-structured and freely moving straight lines.
  • The axial expansion absorption can only be performed using existing connections that are strong enough to cope with pressure at both ends.
Axial expansion joints are designed to absorb axial displacements
  •     They do not change the flow direction;
  •     There is no need for extra distance for moto;
  •     Distribution of the pipeline helps to avoid strain on lateral forces.

Displacement absorption

  •     A possible axial displacement and a slight shift in any direction.
  •     Axial expansion joints with two bellows are used to absorb more movement.

 AREAS OF USE

  •      Hot and cold water systems;
  •      Steam and gas pipelines;
  •      Lubricant, oil transportation lines;
  •      Pressure systems;
  •      With pumps, motors, machines.
