Fire Resistant Container Warehouse for Barrels F90 WCS FASS
Documents
CHARACTERISTICS

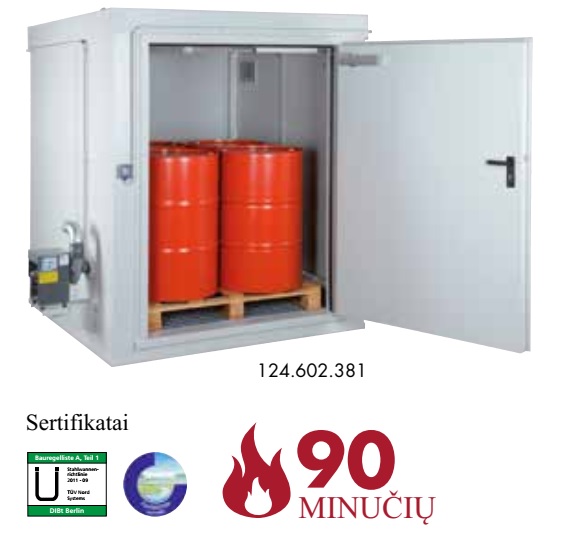

Fire Resistant Container Warehouse for Barrels F90 WCS FASS

- Designed for storing water-hazardous GHS 1-4 materials that promote fire hazards, flammable GHS 1-3 liquids, toxic and highly toxic materials, and waste-requiring maintenance with a container storage depth of 2700 mm and storage height of 2520 mm.
- Provides effective protection against fire inside or outside the container.
- Steel construction with fire resistant thermal insulation (90 min.).
- Tested in a furnace (fire resistance 90 min., MPA Braunschweig), taking into account the possibility of use in construction by the maintenance organization DiBt Berlin.
- Warehouse assembly is available inside or outside the buildings and production halls without the need for safe distances. Door with stable open position.
- Doors and any air intake and ventilation grille are closed and sealed in the event of fire.
- Storage floor and drainage bath made of 5 mm steel sheet, removable steel trusses fitted in the WZ2.2 welded class controlled by EN ISO3452-1.
- Due to the appropriate additional equipment (doors, fans, lighting, heating, air conditioners, shelves, stands), the warehouse can be tailored to your needs, allowing you to efficiently operate 60 liter or 200 l drums and store containers of various sizes and shapes.
- Approved fire resistance (fire resistance 90 min) MPA Braunschweig, Dibt approval, CE mark.
| Type | Product code | Product code |
|---|---|---|
| With the door 1350x2000 mm | 124.602.380 | 124.602.381 |
| Model | WCS-FASS 2/F90 | WCS-FASS 4/F90 |
| Outside dimensions LxWxH, mm | 1720x1540x2325 | 1720x1840x2325 |
| Inner dimensions LxWxH, mm | 1360x950x1900 | 1360x1250x1900 |
| Spill bath capacity, L | 220 | 220 |
| The warehouse holds 200 l of barrels, pcs. | 2 on the euro pallets | 4 on chemical pallets |
Optional warehouse equipment
| Name | Product code |
|---|---|
| Forced ventilation | 124.903.121 |
| Longitudinal luminaire 2x18W, EX ATEX, zone 2, WSC FASS / KTC 90 min. | 124.903.125 |
| Electric heater 2 kW, EX ATEX, WSC 90 min.. | 124.903.104 |
| Electric heater 3000 W, WSC 90 min. | 124.903.105 |
| Potential equalizer, WSC 90 min. | 124.903.120 |
| Distribution box, outer, WSC 90 min. | 124.903.119 |
| External air removal control system, EX ATEX, WSC 90 min. | 124.903.110 |
| Alarm system: emergency lamp, alarm siren, WSC 90 min | 124.903.111 |
