Fire resistant container Storage F90 BCS COMFORT

Send enquiry

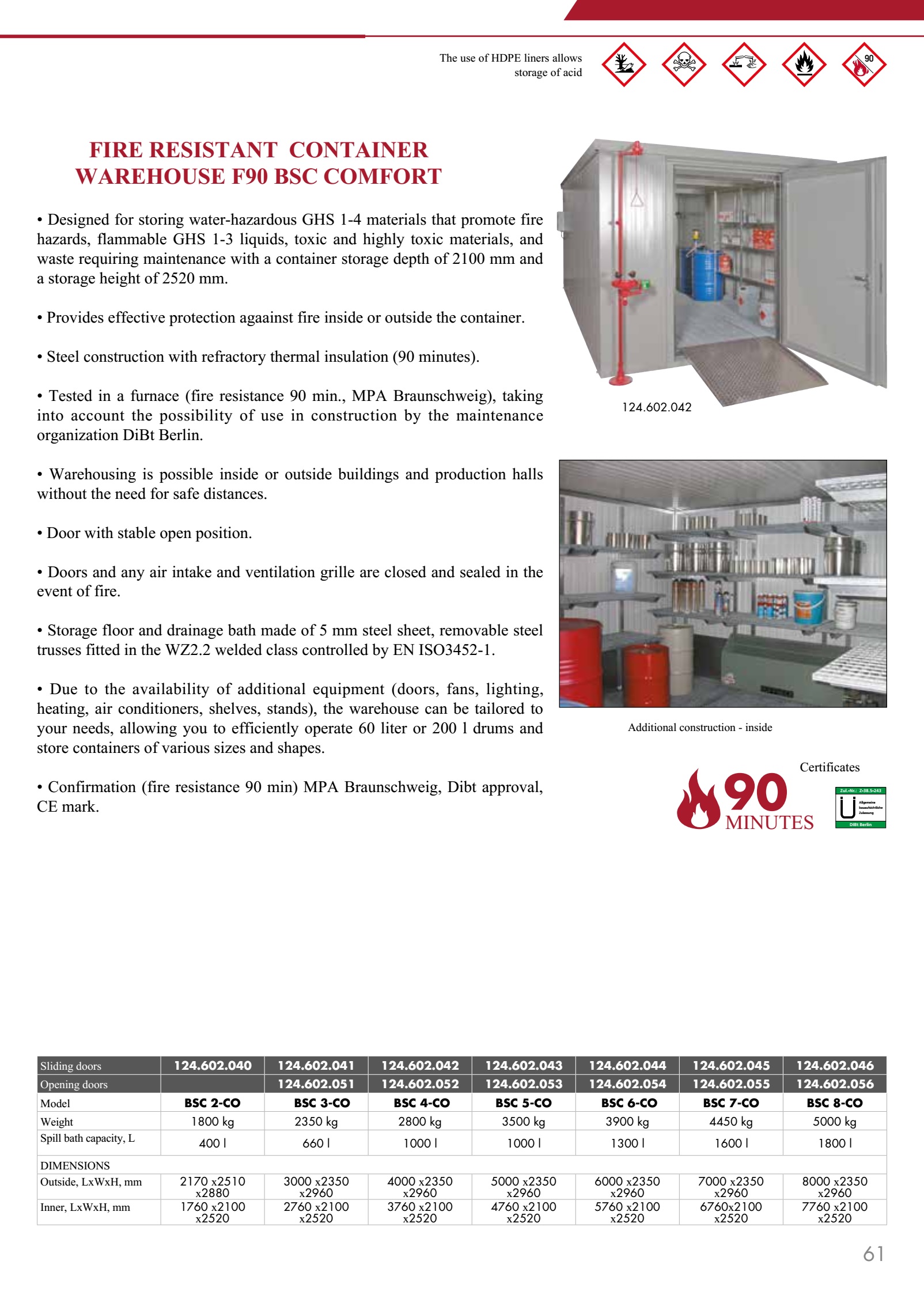

Fire resistant container Storage F90 BCS COMFORT

  • Designed for storing water-hazardous GHS 1-4 materials that promote fire hazards, flammable GHS 1-3 liquids, toxic and highly toxic materials, and waste-requiring care with container storage depths of 2100 mm and storage height of 2520 mm.
  • Provides effective protection against fire inside or outside the container.
  • Steel construction with fire resistant thermal insulation (90 min.).
  • Tested in a furnace (fire resistance 90 min., MPA Braunschweig), taking into account the possibility of use in construction by the maintenance organization DiBt Berlin.
  • Warehouse assembly is available inside or outside the buildings and production halls without the need for safe distances. Door with stable open position.
  • Doors and any air intake and ventilation grille are closed and sealed in the event of fire.
  • Storage floor and drainage bath made of 5 mm steel sheet, removable steel trusses fitted in the WZ2.2 welded class controlled by EN ISO3452-1.
  • Due to the appropriate additional equipment (doors, fans, lighting, heating, air conditioners, shelves, stands).
  • The warehouse can be tailored to Customer needs, allowing you to efficiently operate 60 liter or 200 l drums and store containers of various sizes and shapes.
  • Approved fire resistance (fire resistance 90 min) MPA Braunschweig, Dibt approval, CE mark.
Type Product code Product code Product code Product code Product code Product code Product code
With sliding doors 124,602.040 124.602.041 124.602.042 124.602.043 124.602.044 124.602.045 124.602.046
With opening doors - 124.602.051 124.602.052 124.602.053 124.602.054 124.602.055 124.602.056
Model BSC 2-CO BSC 3-CO BSC 4-CO BSC 5-CO BSC 6-CO BSC 7-CO BSC 8-CO
Weight, kg 1800 2350 2800 3500 3900 4450 5000
Spill bath capacity, L 400 660 1000 1000 1300 1600 1800
Outside dimensions LxWxH, mm 2170x2510x2880 3000x2350x2960 4000x2350x2960 5000x2350x2960 6000x2350x2960 7000x2350x2960 8000x2350x2960
Inner dimensions LxWxH, mm 1760x2100x2520 2760x2100x2520 3760x2100x2520 4760x2100x2520 5760x2100x2520 6760x2520x2070 7760x2100x2520



Download brochure
