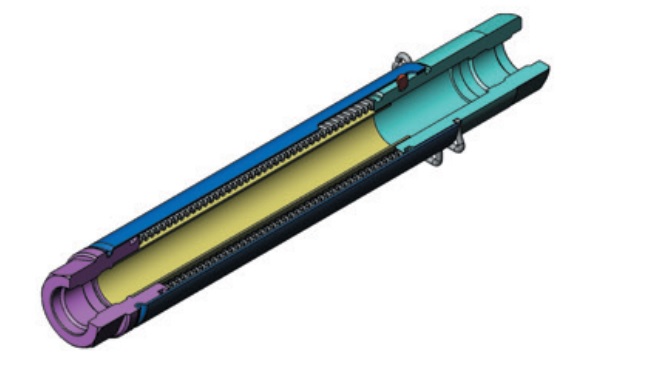

BKD-50 Pipe Expansion Joint with 50 mm axial expansion, threaded

Send enquiry

BKD-50 Pipe Expansion Joint with 50 mm axial expansion, threaded

  • Pipe expansion joints provide axial movement absorption and maintain the pipeline security.
  • A heating pipeline system at 90/70°C causes approximately 3 mm of movement for each floor of the buildings.
  • For the buildings higher than 10 floors, use of the pipe expansion joints becomes compulsory in order to absorbe total expansion amount.
  • Pipe expansion joint application must be repeated for every 10 floors.
Advantages of Pipe Expansion Joints
  • They prevent damage to pipelines result of the line movements
  • They absorb the possible noises and provide convenience for the users
  • They are installed easily and provide time and money saving
  • They have a compact and decorative design that reduces the waste of space
  • They help to protect equipment from stress due to misalignment
DESIGN /Structure
  • Bellow Material Stainless Steel AISI 316L / AISI 321
  • Body Material Aluminium (Opt. Stainless Steel)
  • Connection Types Threaded and Welded End
Operation Conditions
  • Operating Temperature Max 100°C
  • Operating Pressure PN 16
  • Nominal Diameters DN15 (1/2”) - DN100 (4”).
