CHARACTERISTICS
WAMAIR - Polygonal Dust Collectors

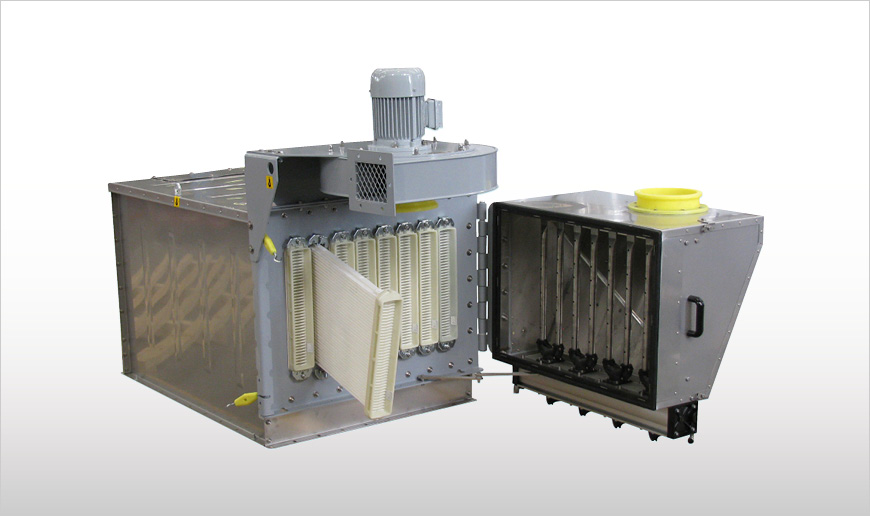

- WAMAIR Dust Collectors consist of a polygonally shaped 304 stainless steel casing,
- Horizontally or vertically inserted filter elements, and a reverse air jet cleaning system integrated in the hinged front easy access door.
- WAMAIR Dust Collectors are either built in for venting applications or come as a stand-alone unit with dust collecting hopper.
- Versions with an integrated fan are available for suction applications.
Function
- WAMAIR Dust Collectors separate dust from the air flow by means of pocket-type or special POLYPLEAT filter elements.
- Dust drops down after a programmable, automatic reverse air jet cleaning device integrated in the access door has removed it from the filtering elements.
- By opening the access door the operator can easily and safely remove the filtering elements from the clean air side.
- The dirty air flow may enter the filter casing from the top inlet flange where heavier particles are subsequently pre-separated while the flow is on its descent.
- Alternatively, dirty air may enter from the bottom flange which can be either connected to a PT-type WAM hopper or to the device to be de-dusted (silo, belt conveyor, bucket elevator, chain conveyor, etc.).
- ATEX-versions for Zone 22 (Category 3D) and Zone 21 (Category 2D) are available.
- All ATEX versions are suitable for application in internal Zone 20.
Features
- Robust, compact 304 stainless steel design.
- Filtering surface: 3 ~ 70m2 (32 ~ 755 sq ft).
- Air volume: 250 ~ 6,500 m3/h (147 ~ 3,830 cfm).
- High filtration efficiency thanks to wide range of B.I.A.-certified filter media.
- Standard version with programmable electronic control panel installed including end-of-cycle cleaning system.
- Reverse air jet cleaning system integrated inside access door for easy maintenance.
- High cleaning efficiency due to "Full Immersion" solenoid valves incorporated in aluminium air tank.
- Quick and safe filtering element replacement from clean air side.
- Quick installation.
- Food-grade version manufactured from FDA and EU 1935/2004-approved materials.
- Standard equipment developed for temperature range from -20°C to 80°C (-4F to 176°F).
- ATEX-version for Zone 22 (Category 3D) and Zone 21 (category 2D) available.
- All ATEX versions suitable for application in internal Zone 20.
- ATEX reduced pressure (PRED = 0.25 barg).
- Explosion relief panel (option).
- Silenced fan integrated in access door reducing operating noise level
