Dust collector WAMFLO to concrete production
Documents
CHARACTERISTICS
Dust collector WAMFLO® FRONT DUST to concrete production
- The WAMFLO Dust Collector range is the result of WAM’s decades of experience in dust filtration technology.
- Since it went into production shortly after the turn of the millennium, tens of thousands of units have left the Group’s manufacturing plants all over the world.
- In diverse configurations WAMFLO has proved to be suitable for a variety of applications in virtually all industries.

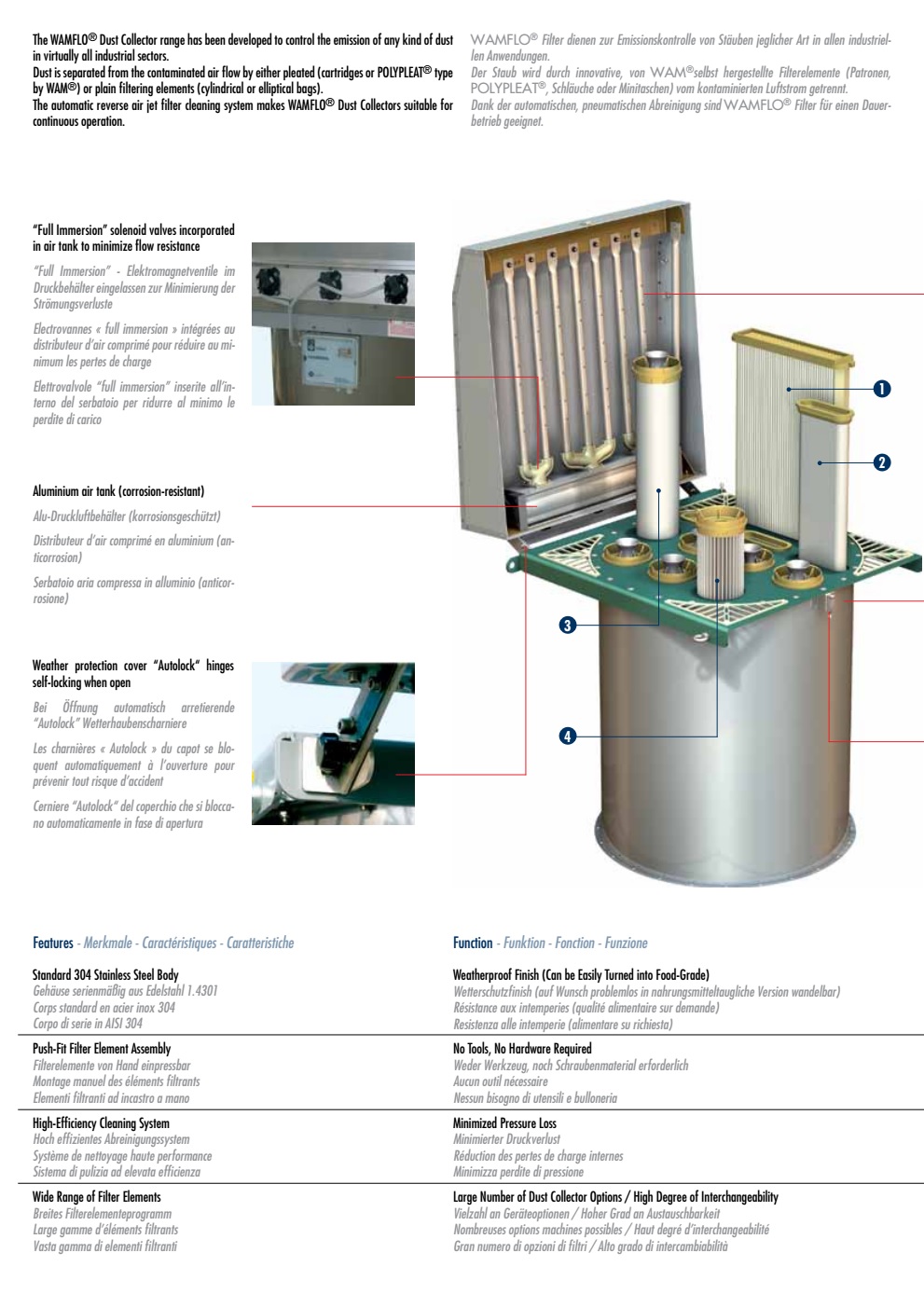

- WAMFLO Dust Collectors are equipped with a cylindrically shaped stainless steel body and flanged bottom ring which contains vertically mounted filter elements of various types including the high efficiency POLYPLEAT.
- An air jet filter element cleaning system is integrated in the hinged top cover.
- WAMFLO Dust Collectors are available with or without suction fan.
- As an option for applications with top-mounted suction fan or in case of limited headroom, WAMFLO can be equipped with a large front door which facilitates access to the filter elements in case of inspection or maintenance.
- In the food-grade version WAMFLO comes in a zero dust residue design.
- WAMFLO is supplied with an integrated modular electronic panel able to manage cleaning cycles according to the specific requirements of the work process.
- It is suitable for operation in explosive environments.
Function
- WAMFLO Dust Collectors are used for both venting and suction applications.
- The unique design of the integrated compressed air jet cleaning system guarantees high efficiency, thus minimising maintenance and reducing total plant cost ownership.
- Moreover, the WAMFLO design with its flanged bottom meets the highest demands regarding health and safety.
Features
- Stainless steel cylindrically shaped body with bottom flange.
- Filter surface: 1 ~ 48 m².
- Air volume: 60 ~ 4,500 m³/h.
- High filtration efficiency thanks to WAM filtering elements.
- Easy maintenance and filtering element replacement.
- Multifunctional, intelligent electronic control panel.
- Filter elements: round bags, elliptical bags, cartridges, POLYPLEAT.
- Comfortable maintenance height.
- Compressed air jet cleaning system integrated in top cover.
- High cleaning efficiency due to "Full Immersion" solenoid valves incorporated in corrosion-resistant air tank for low-on-maintenance operation.
- Safe weather protection cover with lockable quick release.
- Tool-free filtering element removal.
- Increased durability.
- Reduced maintenance costs.
- Hygienic operation.
- Increased work safety.
- Low operating costs (TCO).
- Exceptional price-quality ratio.
