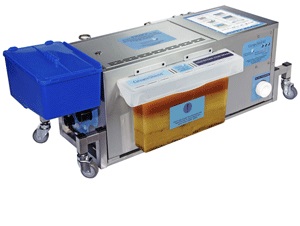

Pro-Active Mechanical Grease Trap GreaseShield GS1850 LL
CHARACTERISTICS
Pro-Active Mechanical Grease Trap GreaseShield GS1850 LL
- Operating in real time, taking advantage of waste thermal energy present in effluent being discharged from commercial kitchens to remove emulsified FOGs, particularly saturated animal fats before they solidify.
- GreaseShield® removes and dewaters organic solid matter (by means of a Pre Filter or FilterShield® and optional internal Automatic Solids Removal / Transfer system) that is typically entrained in the effluent preventing anaerobic foul smelling conditions brought about by biological activity, depleting dissolved oxygen present in the effluent.
- Because biological degradation of organic matter in water is substantially prevented, BOD, COD, FOG and SS loadings are significantly reduced.
- GreaseShield® recirculates grey effluent internally pulsing 5 Min on 5 min off, to promote greater efficiency of FOG removal and to assist in removing “floaty” dairy products.
- This process avoids the usage of potable water.
Approvals:
-
ASME A112.14.3-2000 Testing of Grease Interceptors,
-
ASME A112.14.4-2001 Grease Removal Devices,
-
CSA B481.0-2012 Testing of Grease Interceptors,
-
CSA B481.1-2012 Testing and Rating of Grease Interceptors using Lard,
-
CSA B481.5-2012 Testing and Rating of Grease Interceptors Equipped with a Grease Removal Device & PDI G 101.
-
UL Approved (File No: E361705). Machinery Directive 2006/42/EC and EMC directive 2004/108/EC.
Technical information
| Model type | Flow rate | Application | Functions, features | Default Program | Power, |
|---|---|---|---|---|---|
| GreaseShield® GS1850 - LL (with water heater) | Passive - 26,5 L/min. ProActive - 108 L/ min. | 10 to 20 Grid Owens with Lewel discharge. Do not exceeding rated flows | Genie H2O Heater On Demand System -Supplied as standard (2509P01). 24 Volt PLC 4 Way - Controls both main and LL tank operation. LL Tank Filter built in for LL Inlet - Ensure ovens are plumbed into the LL inlet. Solenoid Valve WRAS approved (or similar approval) Solenoid Anti - Flood Pump - To maintain normal water level + recalibration feature. Anti-Flood Sensor included | Start 7.00 Am, Stop 02.30 Am. FOG roller pulsing 5 Min On 5 min off. An anti-Flood and Recalibration cycle, when water intake is activated FOG roller is inhibited. Mains lead per country. | 240 V; 50 Hz; 0.6 A |
| GreaseShield® GS1850-LL PF (with water heater and prefilter) | Passive - 26,5 L/min. ProActive - 108 L/ min. | 10 / 20 Grid Ovens with Low Level Discharge and Sink. Do not exceed rated inflows | PreFilter. Genie H2O Heater On Demand System -Supplied as standard (2509P01). 24 Volt PLC 4 Way - Controls both main and LL tank operation. LL Tank Filter built in for LL Inlet - Ensure ovens are plumbed into the LL inlet and sink into the PF inlet. Solenoid Valve WRAS approved (or similar approval) Solenoid. Anti-Flood Pump - To maintain normal water level + recalibration feature Anti-Flood Sensor included | Start 7.00 Am, Stop 02.30 Am. FOG roller pulsing 5 Min On 5 min off. An anti-Flood and Recalibration cycle, when water intake is activated FOG roller is inhibited. Mains lead per country. | 240 V; 50 Hz; 0.6 A |
| GreaseShield® GS1850 LL F (with water heater and Filtershield) | Passive - 26 L/ min. ProActive - 120 L/ min. | 10 / 20 Grid Ovens with Low Level Discharge and Pot Sinks / Pre-Rinse Sink. Do not exceed rated inflows. | Filtershield. Genie H2O Heater On Demand System -Supplied as standard (2509P01). 24 Volt PLC 4 Way - Controls both main and LL tank operation. LL Tank Filter built in for LL Inlet - Ensure ovens are plumbed into the LL inlet and sink into the FilterShield inlet. Solenoid Valve WRAS approved (or similar approval) Solenoid. Anti-Flood Pump - To maintain normal water level + recalibration feature. Anti-Flood Sensor included | Start 7.00 Am, Stop 02.30 Am. FOG roller pulsing 5 Min On 5 min off. An anti-Flood and Recalibration cycle, when water intake is activated FOG roller is inhibited. Mains lead per country. | 240 V; 50 Hz; 0.6 A |
