Start /Products /New generation grease traps GREASESHIELD /Pro-Active Mechanical Grease Trap GreaseShield GS1850-ECO

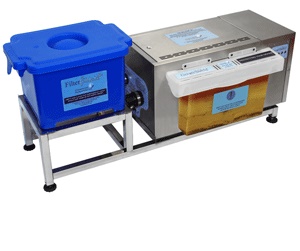

Pro-Active Mechanical Grease Trap GreaseShield GS1850-ECO

Send enquiry
Pro-Active Mechanical Grease Trap GreaseShield 1850-ECO
  • Operating in real time, taking advantage of waste thermal energy present in effluent being discharged from commercial kitchens to remove emulsified FOGs, particularly saturated animal fats before they solidify.
  • GreaseShield® removes and dewaters organic solid matter (by means of a Pre Filter or FilterShield® and optional internal Automatic Solids Removal / Transfer system) that is typically entrained in the effluent preventing anaerobic foul smelling conditions brought about by biological activity, depleting dissolved oxygen present in the effluent.
  • Because biological degradation of organic matter in water is substantially prevented, BOD, COD, FOG and SS loadings are significantly reduced.
  • GreaseShield® recirculates grey effluent internally pulsing 5 Min on 5 min off, to promote greater efficiency of FOG removal and to assist in removing “floaty” dairy products.
  • This process avoids the usage of potable water.
Approvals:
  • ASME A112.14.3-2000 Testing of Grease Interceptors,
  • ASME A112.14.4-2001 Grease Removal Devices,
  • CSA B481.0-2012 Testing of Grease Interceptors,
  • CSA B481.1-2012 Testing and Rating of Grease Interceptors using Lard,
  • CSA B481.5-2012 Testing and Rating of Grease Interceptors Equipped with a Grease Removal Device & PDI G 101.
  • UL Approved (File No: E361705). Machinery Directive 2006/42/EC and EMC directive 2004/108/EC.
Technical information
Model type
Flow rate
Application
Functions, features
Default Program
Power,
GreaseShield® GS1850 ECO
Passive -
26,5 L/min.
ProActive - 106 L/ min.
 Pot Wash & Pre Rinse Double Bowl Sinks. Do not exceed rated flows Recirculation - Surface of water spray function to enhance FOG removal and clean outlet weir area. Service Function - With Service hose. Press and hold button for 5 seconds to operate. Ensure safe disposal. Refer to service manual.. Water Connection - Water Solenoid WRAS approved (or similar approval). CIP Bar. Pressure Switch & Air Sensor Start 7.00 Am, Stop 02.30 Am. FOG roller pulsing 5 Min On 5 min off. Recirculation - 10 seconds on, every 90 seconds in each 5 min cycle. Service Function - Manual button at the rear of machine is for service in conjunction with service grey hose. Ensure approved container for accepting the effluent discharge is in place. Mains lead per country. 240 V;  50 Hz;
0.49 A
GreeShield® GS1850 ECO PF (with prefilter)
Passive -
26,5 L/min.
ProActive - 106 L/ min.
 Pot Wash & Pre Rinse Double Bowl Sinks. Do not exceed rated flows PreFilter. Recirculation - Surface of water spray function to enhance FOG removal and clean outlet weir area. Service Function - With Service hose. Press and hold button for 5 seconds to operate. Ensure safe disposal. Refer to service manual.. Water Connection - Water Solenoid WRAS approved (or similar approval). No Potable Water Connection. No CIP Bar Start 7.00 Am, Stop 02.30 Am. FOG roller pulsing 5 Min On 5 min off. Recirculation - 10 seconds on, every 90 seconds in each 5 min cycle. Service Function - Manual button at the rear of machine is for service in conjunction with service grey hose. Ensure approved container for accepting the effluent discharge is in place. Mains lead per country. 240 V;  50 Hz;
0.49 A
GreaseShield® GS1850 ECO F (with filter shield)
Passive -
26,5 L/min
ProActive - 120 L/ min.
 Pot Wash & Pre Rinse Double Bowl Sinks. Do not exceed rated flows Recirculation - Surface of water spray function to enhance FOG removal and clean outlet weir area. Service Function - With Service hose. Press and hold button for 5 seconds to operate. Ensure safe disposal. Refer to service manual. Water Connection - Water Solenoid WRAS approved (or similar approval). CIP Bar. Pressure Switch & Air Sensor Start 7.00 Am, Stop 02.30 Am. FOG roller pulsing 5 Min On 5 min off. Recirculation - 10 seconds on, every 90 seconds in each 5 min cycle. Service Function - Manual button at the rear of machine is for service in conjunction with service grey hose. Ensure approved container for accepting the effluent discharge is in place. Mains lead per country. 240 V;  50 Hz;
0.49 A
