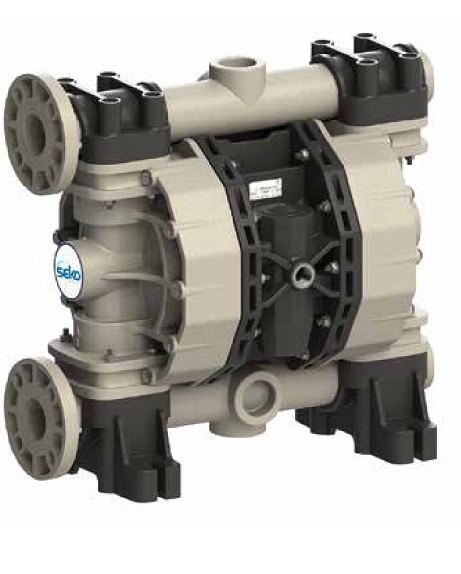

Air operated double diaphragm pumps P700 and P1000

Send enquiry
Air operated double diaphragm pumps P 700 and P 1000. Maximum debit 700 l./min. -1050 l./min
Pump features:
  • Can work dry;
  • It can suck to 5-9 m in height;
  • May transport viscous liquids;
  • It can transport creams and jelly, butter, marmalade;
  • It can transport liquids with solid particles;
  • Pumps required for the functioning of compressed air.
Are widely used in many applications, depending on the viscosity and debit indicators- honey, cream, mayonnaise, butter, tomato sauce, toothpastes, gels, oils, oils, glycerol, paper pulp, paint, SAE oil, varnish, etc. transportation.

TECHNICAL DATA
Parameter / model DUOTEK P 700 DUOTEK P 1000
Fluid connections: 2''BSP 3'' BSP DN80
Air connections, mm: 3/4''BSP 3/4''BSP
Max. flow rate, lt./ min.: 700 1050
Max. air pressure, bar: 8 8
Max. delivery head, m: 80 80
Max. suction lift, dry, m: 5 5
Max. suction lift wet, m: 9,8 9.8
Max. solid passing,  mm: 8.5 10
Noise level, dB: 75 78
Displacement for cycle, cc: 1250 2825
Max. viscocity, cPs: 50000 55000
