Air operated double diaphragm pumps P 18 and P 30
Code: P 18
On order
Air operated double diaphragm pumps P 18 and P 30
Air operated double diaphragm pumps P 18 and P 30. Maximum debit 20 l./min. -35 l./min
CHARACTERISTICS
Air operated double diaphragm pumps P 18 and P 30. Maximum debit 20 l./min. -35 l./min

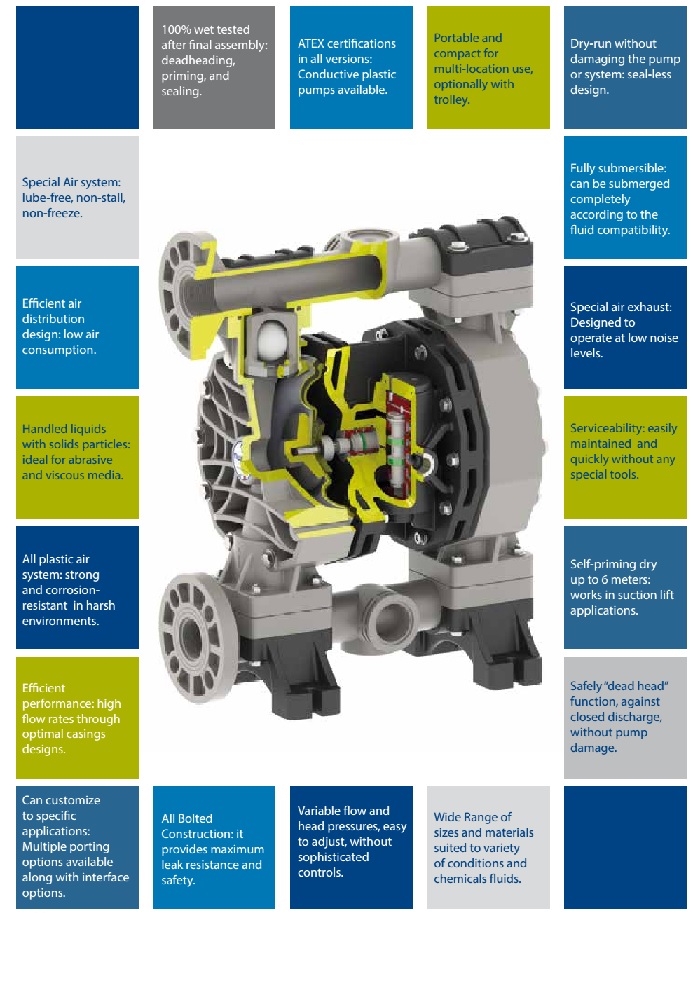

Pump features:
- Can work dry;
- It can suck to 5-9 m in height;
- May transport viscous liquids;
- It can transport creams and jelly, butter, marmalade;
- It can transport liquids with solid particles;
- Pumps required for the functioning of compressed air.
Are widely used in many applications, depending on the viscosity and debit indicators- honey, cream, mayonnaise, butter, tomato sauce, toothpastes, gels, oils, oils, glycerol, paper pulp, paint, SAE oil, varnish, etc. transportation.
TECHNICAL DATA
| Parameter / model | DUOTEK P 18 | DUOTEK P 30 |
|---|---|---|
| Fluid connections: | 3/8''BSP | 1/2''BSP |
| Air connections, mm: | 6 | 6 |
| Max. flow rate, lt./ min.: | 20 | 35 |
| Max. air pressure, bar: | 8 | 8 |
| Max. delivery head, m: | 80 | 80 |
| Max. suction lift, dry, m: | 6 | 5 |
| Max. suction lift wet, m: | 9,8 | 9.8 |
| Max. solid passing, mm: | 3 | 3.5 |
| Noise level, dB: | 65 | 65 |
| Displacement for cycle, cc: | 30 | 50 |
| Max. viscocity, cPs: | 12000 | 15000 |
