Air operated double diaphragm pumps P100 and P160

Send enquiry
Air operated double diaphragm pumps P 100 and P 160. Maximum debit 110 l./min. -170 l./min

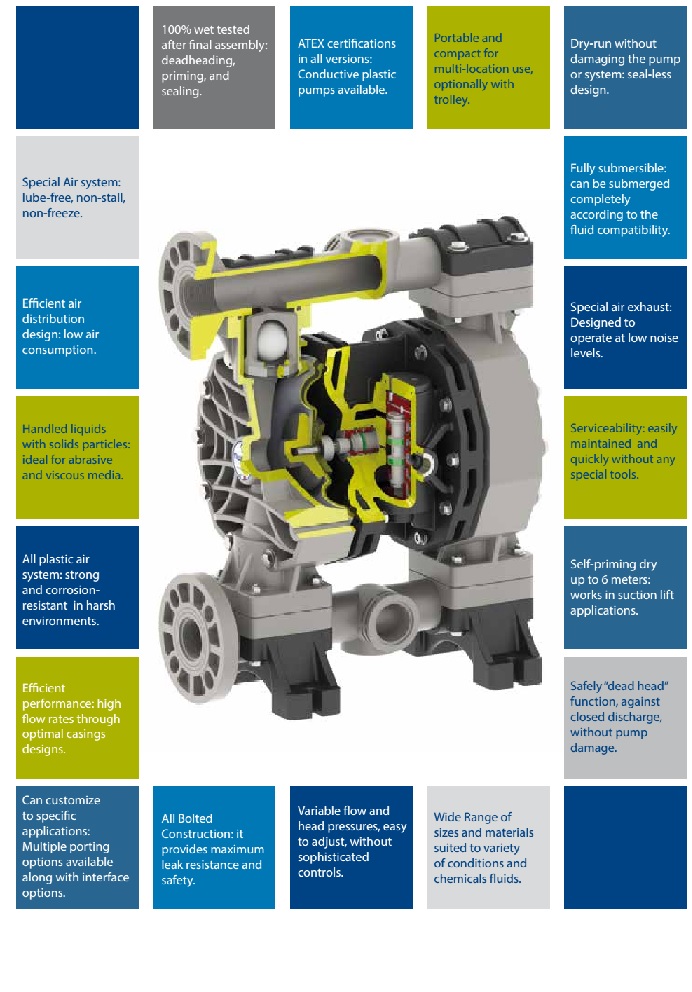

Pump features:
  • Can work dry;
  • It can suck to 5-9 m in height;
  • May transport viscous liquids;
  • It can transport creams and jelly, butter, marmalade;
  • It can transport liquids with solid particles;
  • Pumps required for the functioning of compressed air.
Are widely used in many applications, depending on the viscosity and debit indicators- honey, cream, mayonnaise, butter, tomato sauce, toothpastes, gels, oils, oils, glycerol, paper pulp, paint, SAE oil, varnish, etc. transportation.

TECHNICAL DATA
Parameter / model DUOTEK P 100 DUOTEK P 160
Fluid connections: 3/4''BSP 1''BSP
Air connections, mm: 3/8''BSP 1/2''BSP
Max. flow rate, lt./ min.: 110 170
Max. air pressure, bar: 8 8
Max. delivery head, m: 80 80
Max. suction lift, dry, m: 6 6
Max. suction lift wet, m: 9,8 9.8
Max. solid passing,  mm: 3.5 7.5
Noise level, dB: 72 75
Displacement for cycle, cc: 100 330
Max. viscocity, cPs: 25000 35000
