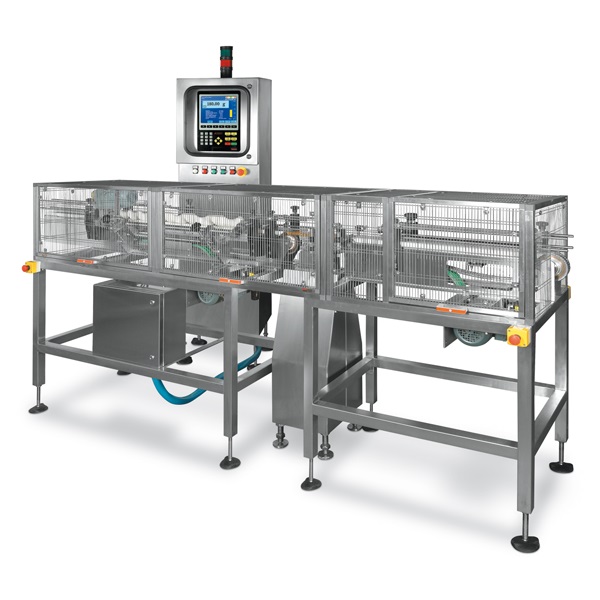

Versa Teorema Can Checkweigher

Versa Teorema Can Checkweigher
  • Depend on the Thermo Scientific™ Versa Teorema Checkweigher for unparalleled speed and accuracy in today's demanding, high-rate canning lines.
  • Combining rugged capability with accuracy, the Versa Teorema checkweigher provides a new standard in high-rate can weighing.
Product Description:
The Versa Teorema Can Checkweigher Features:
  •     Side-to-side conveyor transfer capability at the in-feed and out-feed.
  •     Photo-eyes to provide controlled feed of cans via a can-stop
  •     Feed-screw properly spaces open or closed cans, steel or aluminum cans and 2- or 3-piece cans at speeds up to 700 cans/minute.
  •     High-rate reject mechanism with special profile for product handling control.
  •     Open design and stainless steel construction facilitate high-pressure cleaning.
  •     Auto monitor of temperature and humidity to prevent heat and moisture concerns.
  •     Durability for harsh environment can line operation.
  •     No moving parts weigh section (no chains or belts) for high accuracy and low maintenance.
  •     Highest levels of safety guarding and interlock.
  •     Specified for the highest levels of washdown and humidity.
  •     Equipped with Thermo Scientific™ Versa Checkweigher Controller.

FULL SPECIFICATION:

  • Power Consumption: 3 A(control);
  • Description: Teorema Can Checkweigher;
  • Frame: Stainless-Steel;
  • Height (Metric) Line: 800 - 1,200 mm ±50;
  • Hertz: 50/60Hz;
  • Length (Metric) Package: 75 mm max.;
  • Load Cells: Strain Guage;
  • Weight, Max: 1.5 kg;
  • Operating Temperature:-10° to 40°C (14° to 105°F);
  • Power Drop: 220-230V;
  • Voltage: 220-230V;
  • Package Type: Cans, glass jars;
  • Accuracy: 0.5-1.5 g;
  • Washdown Option: Yes;
  • Rejects: Air Flippeer, Air Bopper;
  • Rate: 660 CPM;
  • Air Requirements:  60-80 psi;
  • Certifications/Compliance:  CE;
  • Connections: USB; serial; parallel; FTP Ethernet; Modbus;
  • Material: Aluminum /Stainless steel;
  • Options: Many options for reject and product handling; IP66 option pack; FDA belting; Servo filler/feedback option; Tracker option; Combination system with Thermo Scientific APEX 300 metal detector;
  • Relative Humidity: 20% to 90%, non-condensing.
