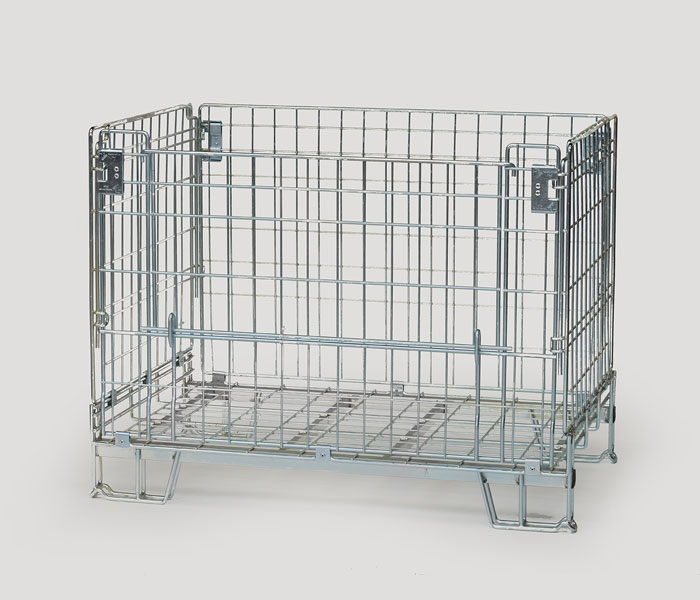

TFH-type wire containers for wholesale and retail networks

TFH-type wire containers for wholesale and retail networks, warehouses and logistics companies
  • Containers from galvanized wire;
  • Various configurations;
  • For the storage of goods, transport and display;
  • Used in the retail and wholesale networks, warehouses and logistics companies.
Description
Data
Data
Data
Data
Data
Data
Container type TFH 91 TFH 75 TFAH 111 TFLB 75 TFLE TFH75 su aps.
Container index 207.000.00.Z 249.000.00.Z 216.000.00.Z 217.000.00.Z 219.000.00.Z 233.000.00.Z
Capacity, kg 800 800 800 800 800 800
Containers weight, kg 46 43 58 46 32 49
Container wire design
Galvanized steel wire Galvanized steel wire Galvanized steel wire Galvanized steel wire Galvanized steel wire Galvanized steel wire
Stacking, max. pcs.
2+1 2+1 2+1 2+1 2+1 2+1
External dimensions, mm WxLxH 1198 x 785 x 910 1198 x 785 x 750 1198 x 785 x 1125 1198 x 970 x 750 1198 x 785 x 910 1198 x 785 x 750
Internal dimensions, mm WxLxH
1120 x 750 x 760
1198 x 785 x 600
1120 x 750 x 975
1198 x 945 x 600
1120 x 750 x 760
1120 x 750 x 600
Mesh dimensions, (side/bottom) mm 60x100/60x130 60x100/60x130 65x140/60x130
60x100/60x130
60x100/60x130 50 x 50
Door - - in 1200 mm wall in 1200 mm wall in 1200 mm wall -
Distance from the floor, mm 150 150 150 150 150 150
Optional
Castors 125 mm diameter, with the protection of big bags of internal security, the upper lid, logo plate, the documents on the tray, the unit lifting forks.
Castors 125 mm diameter, with the protection of big bags of internal security, the upper lid, logo plate, the documents on the tray, the unit lifting forks.
Castors 125 mm diameter, with the protection of big bags of internal security, the upper lid, logo plate, the documents on the tray, the unit lifting forks.
Castors 125 mm diameter, with the protection of big bags of internal security, the upper lid, logo plate, the documents on the tray, the unit lifting forks.
Castors 125 mm diameter, with the protection of big bags of internal security, the upper lid, logo plate, the documents on the tray, the unit lifting forks.
Castors 125 mm diameter, with the protection of big bags of internal security, the upper lid, logo plate, the documents on the tray, the unit lifting forks.
