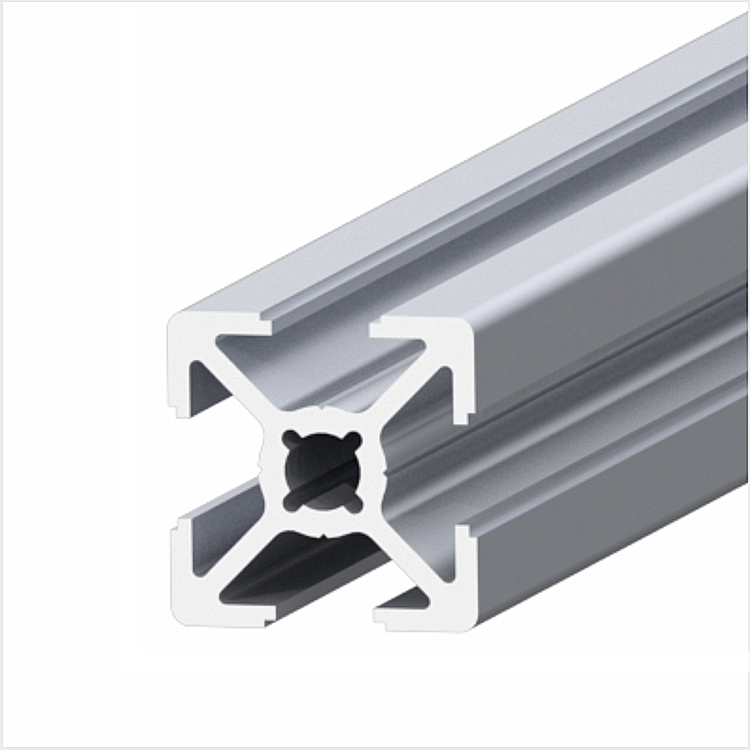

Square aluminium profile SLOT6 20x20mm
Code: SLOT6
On order
Square aluminium profile SLOT6 20x20mm
Aluminium Profile SLOT 6 20 x 20 mm
Documents
CHARACTERISTICS
Aluminium Profile SLOT6 20 x 20 mm
Product code 1.1.06.020020.01
- These profiles are specifically designed for mechanical applications use areas: solid constructions, buildings and staitic and dinamic construction.
- Profiles are made of special aluminum, which is also known as the 6063.
- Profiles surface is coated with the ELOXAL, which is resistant to corrosion.
- It should not be primed or painted, such as steel structures.
Areas of use:
- structural optimization;
- panels, boards, windows, cabinets production.
Technical data:
- dimensions: 20 x 20 mm;
- aluminum type: 6063;
- one profile length: 6000 mm;
- Ix: 0,61cm4;
- Iy: 0,61cm4;
- Wx: 0,61cm3;
- Wy: 0,61cm3;
- the relative weight: 0.36 kg / m.
