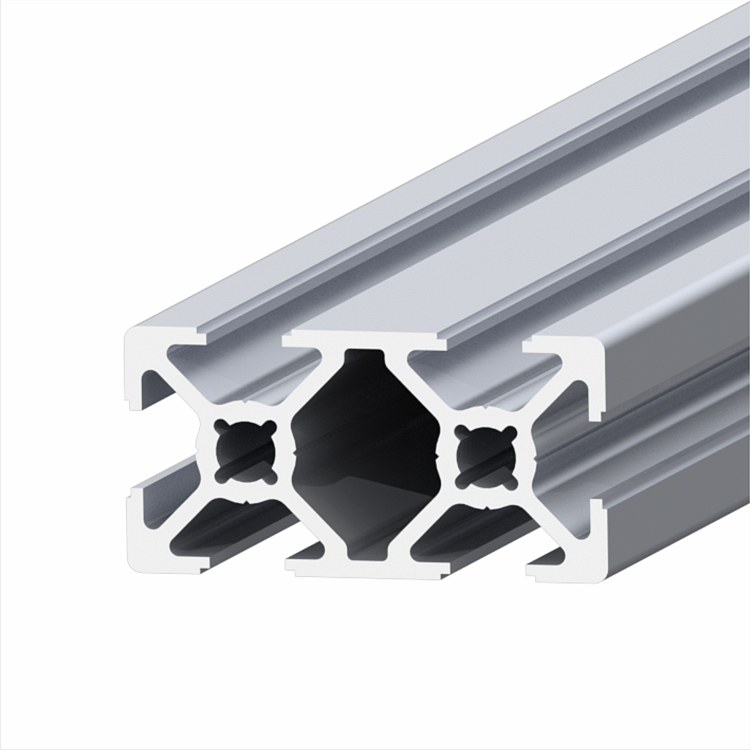

Rectangular aluminium profile SLOT6 20x40mm
Documents
CHARACTERISTICS
Rectangular aluminium profile SLOT6 20x40mm
It is used in production of cabinets of devices, and applications such as stand and panels.
Data:
- These profiles are specifically designed for mechanical applications use areas: solid constructions, buildings and staitic and dinamic construction.
- Profiles are made of special aluminum, which is also known as the 6063.
- Profiles surface is coated with the ELOXAL, which is resistant to corrosion.
- It should not be primed or painted, such as steel structures.
Areas of use:
- structural optimization;
- panels, boards, windows, cabinets production.
Technical data:
- dimensions: 20x40mm;
- aluminum type: 6063;
- one profile length: 6000 mm;
- Ix : 4,17 cm4;
- Iy : 1,12 cm4;
- Wx: 2,08 cm3;
- Wy: 1,12 cm3;
- the relative weight: 0,73 kg/m.
