SLH NB 1x2; 5x2 container warehouses for chemicals
Documents
CHARACTERISTICS

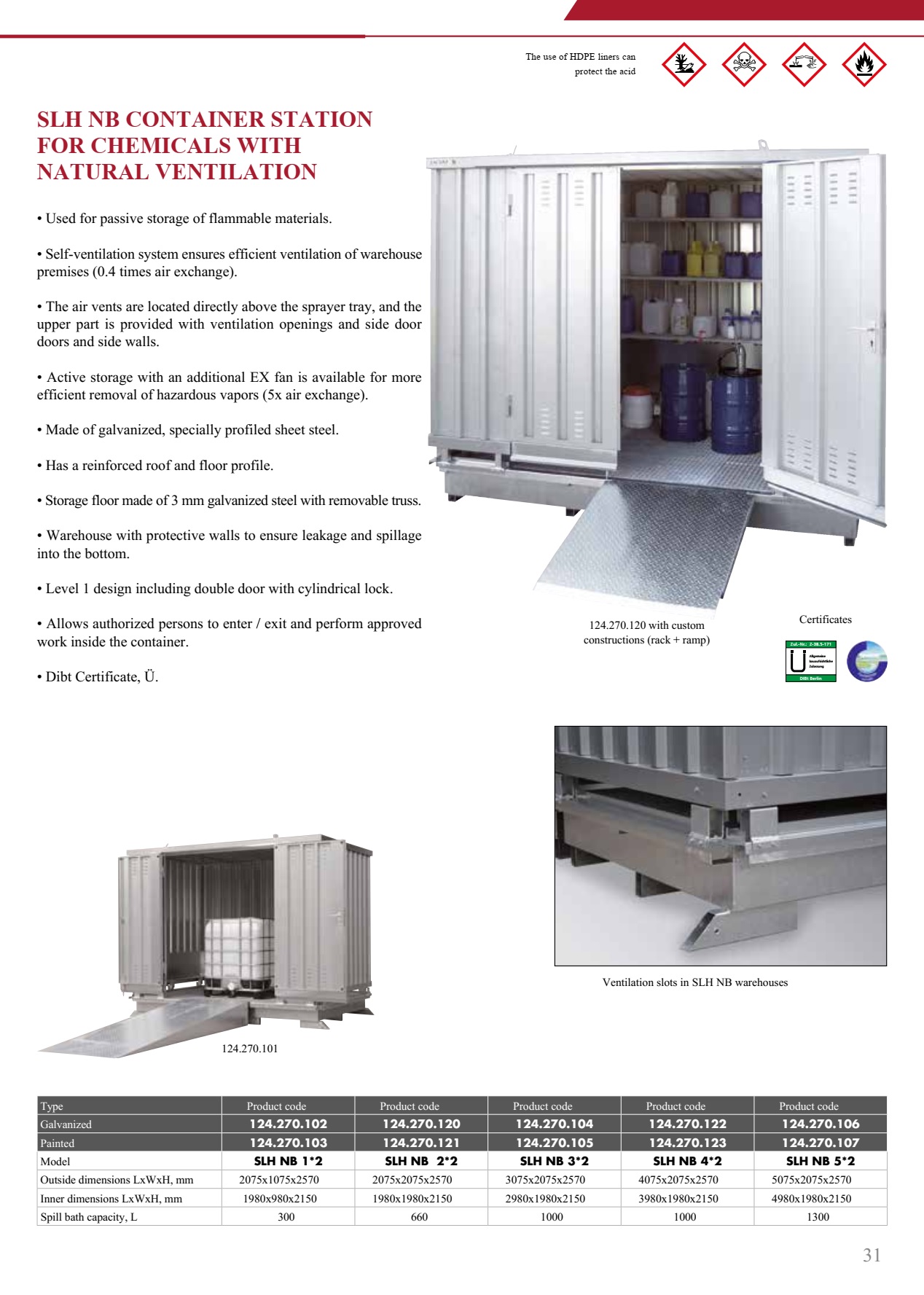

SLH NB 1x2; 5x2 container warehouses for chemicals

-
Used for passive storage of flammable materials.
-
The self-ventilation system ensures efficient ventilation of the warehouse premises (0.4 times air exchange).
-
The ventilation holes are located directly above the sprayer tray, and the upper part is provided with ventilation openings and side door doors and side walls.
- Active storage with an additional EX fan is available for more efficient removal of hazardous vapors (5x air exchange).
- Made of galvanized, specially profiled sheet steel.
- Has a reinforced roof and floor profile.
- Storage floor made of 3 mm thick galvanized sheet steel with removable truss.
- Warehouse with protective walls for leakage and spillage into the bottom of the floor.
- Level 1 construction including double door with cylindrical lock.
- Allows you to enter / exit authorized persons and perform approved work inside the container.
- Dibt certificate, Ü.
| Type | Product code | Product code | Product code | Product code | Product code |
|---|---|---|---|---|---|
| Galvanized | 124.270.102 | 124.270.120 | 124.270.104 | 124.270.122 | 124.270.106 |
| Painted | 124.270.103 | 124.270.121 | 124.270.105 | 124.270.123 | 124.270.107 |
| Model | SLH NB 1x2 | SLH NB 2x2 | SLH NB 3x2 | SLHNB 4x2 | SLH NB 5x2 |
| Outside dimensions LxWxH, mm | 2075x1075x2570 | 2075x2075x2570 | 3075x2075x2570 | 4075x2075x2570 | 5075x20750x2570 |
| Inner dimensions LxWxH, mm | 1980x980x2150 | 1980x1980x2150 | 2980x1980x2150 | 3980x1980x2150 | 4980x1980x2150 |
| Spill bath capacity, L | 300 | 660 | 1000 | 1000 | 1300 |
