SLH NB 1x1; 1,5x1,5 KTC container storage for chemicals
Documents
CHARACTERISTICS

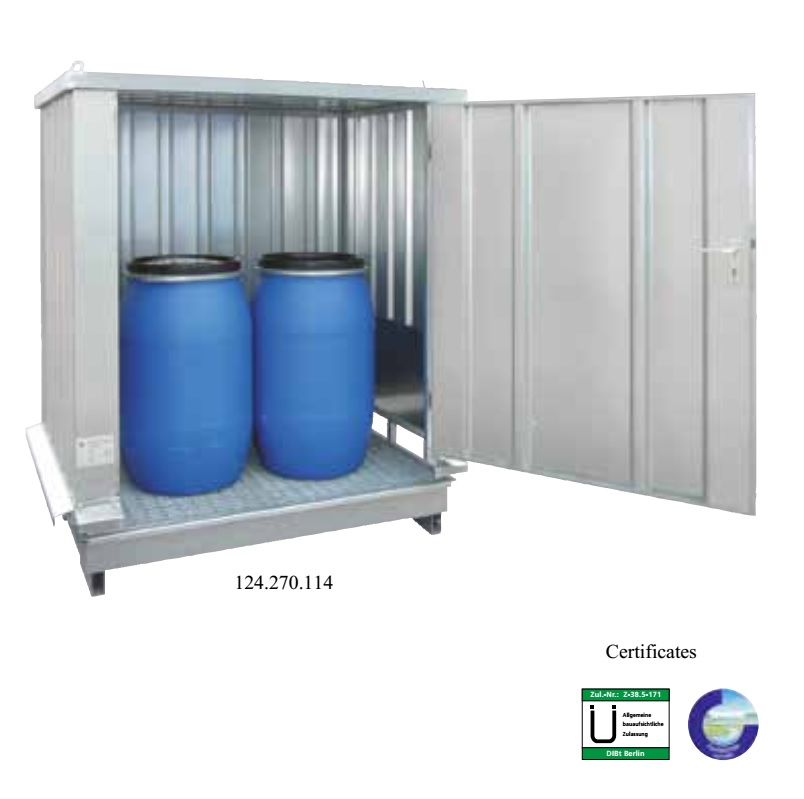

SLH NB 1x1; 1,5x1,5 KTC container storage for chemicals

- Designed for safe storage of flammable materials.
- The self-ventilation system ensures efficient ventilation of the warehouse premises (air exchange 0.4 times).
- The ventilation holes are directly above the hopper, the ventilation holes on the top and the side doors of the storehouse and the side walls.
- Made of galvanized, specially profiled sheet steel.
- Has a reinforced roof and floor profile.
- Storage floor made of 3 mm thick galvanized sheet steel with removable truss.
Warehouse Equipment:
- Anti-splash protection for leakage and spillage into the bottom of the floor.
- Level 1 design includes one-wing door with cylindrical lock.
- Provides access to warehouse interior and approved works.
- At any time, the warehouse can be moved to a new location using a forklift or a crane.
- Dibt certificate, Ü.
| Type | Product code | Product code | Product code |
|---|---|---|---|
| Galvanized | 124.270.100 | 124.270.114 | 124.270.600 |
| Painted | 124.270.101 | 124.270.115 | 124.270.601 |
| Model | SLH 1x1 | SLH 1,5x1,5 | SLH 1,5x1,5 KTC |
| Outside dimensions LxWxH, mm | 1700x1300x2160 | 1700x1700x2160 | 1700x1700x2450 |
| Inside dimensions LxWxH, mm | 1570x1170x1790 | 1570x1570x1790 | 1570x1570x1790 |
| Spill bath capacity , L | 220 | 220 | 220 |
| Weight, kg | 330 | 420 | 460 |
| Capacity | 2x200 Lbarrel | 4x200 L barrel | 1xKTC |
