Multi chrusher FR

Send enquiry

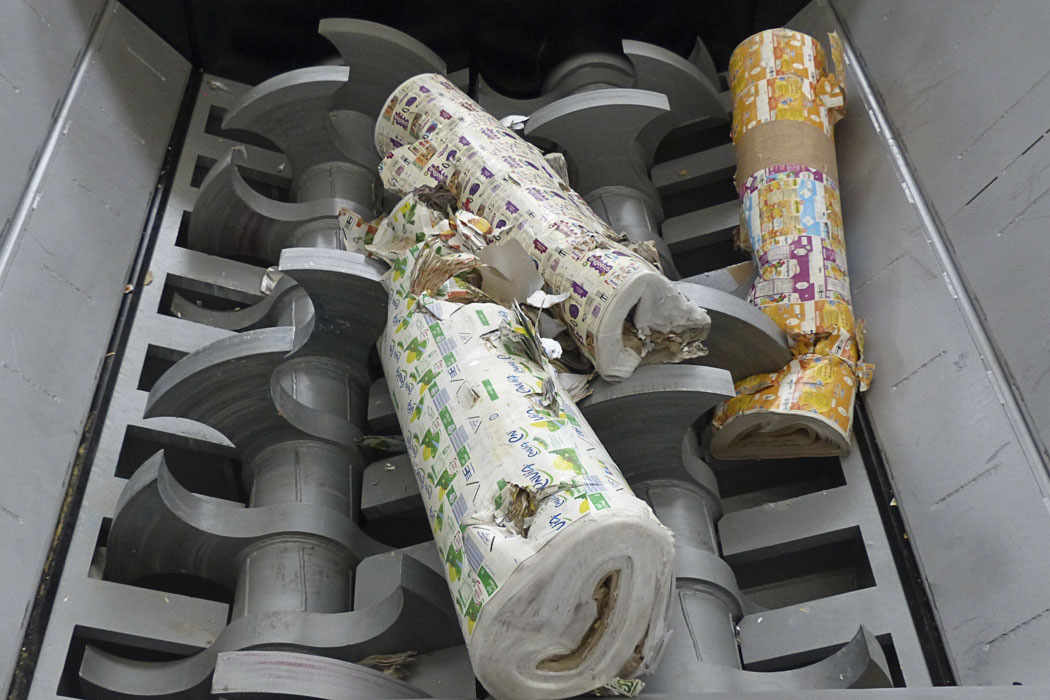

Multi chrusher FR
  • The multi-crusher series FR is designed to be installed as primary machine in plants for the treatment of municipal solid waste, bulky waste, industrial waste and for all kinds of materials.
  • The innovative technology reduces the maintenance costs and simplify the management.
  • The shafts revolution cycles managed by PLC allow to work with large waste quantity inside the hopper, without machine downtime for overloading or bridging and without further options like hydraulic pusher.
  • The multi crusher FR is available in different models and sizes to fulfill all productions from the lowest to the highest quantities
Technologies:
  • Sieving cutting-table to define the output size, separated from the machine frame
  • Counter-blades fit on both the blades sides, using both cutting profiles and doubling the blades lifetime
  • Blades are made in wear-proof steel
  • Adjustable output size
  • Bearings of the cutting shafts completely protected from the waste by a double chamber
  • Automatic greasing managed by PLC
  • Built-in modem for fast diagnostics
  • Fast replacement of the shafts
Data
Type Application Overal dimensions, mm Cutting chambes dimensions, mm Weight, kg Power, kW Blades Blades thickness, mm
FR1800, hydraulic Municipal solid, bulky, industrial, packaged, wood waste 1500 x 3500 x H685 1045 x 1690 7000 160
Standard, welded
on shaft
 80
FR2000 hydraulic Municipal solid, bulky, industrial, packaged, wood waste 1705 x 3900 x H780 1245 x 1890 10000 250
Standard, welded
on shaft
 100
FR2500 hydraulic Municipal solid, bulky, industrial, packaged, wood waste 1705 x 4490 x H780 1245 x 2500 11000 250
Standard, welded
on shaft
 100
FR5000 hydraulic Municipal solid, bulky, industrial, packaged, wood waste 2155 x 4510 x H780 1695 x 2500 13000 315
Standard, welded
on shaft
 100
