663-11318 L PCV elastic waste water collection trays, for barrels, IBC tanks
Code: 663-11318
On order
663-11318 L PCV elastic waste water collection trays, for barrels, IBC tanks
CHARACTERISTICS
663-11318 L PCV Elastic Sewerage Bathtubs Rigid-Lock QuickBERM, For Barrels, IBCs
- Product code: 104.701.100.
- Made of very durable PVC coated fabric with UV resistance.
- The entire construction is made from one piece of fabric without joints, quick and easy to install without tools.
- High resistance and chemical resistance to very aggressive liquids including oils, lubricants and most acids.

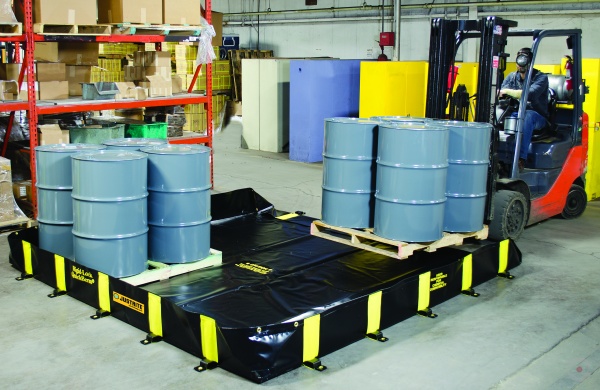

- For storage of barrels and IBCs.
- Built-in stainless steel 305 mm high brackets keep the side walls fully upright at an angle of 90 ° to the ground.
- The edges of the walls have a reinforced structure at a height of 25 mm from the edge, which ensures their high mechanical strength and resistance to breaking or tearing.
- The side panels fold up quickly and easily, making it easier to get in and out of vehicles.
- A simple click on the wall releases the bracket and opens the wall, allowing the vehicle to enter the bathroom at any angle.
- The patented design of wall brackets eliminates the risk of them collapsing and falling as they move along the bathroom walls.
- The reinforced angular design and continuous connection lines produced by high-frequency electric field welding technology ensure extremely long-lasting bathtub durability, joint tightness, overall fluid tightness and long-lasting performance.
- Each bracket is equipped with a durable stainless steel bracket that allows the bath to be firmly anchored to the ground.
- Optional:
- ground anchors and mats,
- wheel mats,
- mats that increase the resistance of the bath to stone surfaces.
- The design of the folding portable bath allows quick assembly for transport and storage.
- Fold-out dimensions (internal) WxLxH: 1200 x 1800 x 305 mm,
- Dimensions after folding WxLxH: 610 x 610 x 127 mm,
- Capacity 663 L.
- Weight 12.7 kg.
- Color black.
Specification of the ordered Rigid-Lock QuickBERM waste collection tubs
| Modeli Nr. | Capacity, L | Measurements after unfolding, mm | Folded dimensions, mm | Weight, kg |
|---|---|---|---|---|
| 28512 | 663 | 1200x1800x305 | 610x610x127 | 11 |
| 28514 | 890 | 1200x2400x305 | 610x610x152 | 13 |
| 28516 | 1344 | 1800x2400x305 | 610x610x305 | 16 |
| 28518 | 1798 | 2400x2400x302 | 660x660x305 | 19 |
| 28519 | 2820 | 3000x3000x305 | 711x711x305 | 25 |
| 28522 | 4069 | 3700x3700x305 | 711x71x305 | 31 |
| 28524 | 5432 | 3700x4900x305 | 660x660x406 | 39 |
| 28526 | 6796 | 3700x6100x305 | 762x762x406 | 46 |
| 28528 | 7230 | 4900x4900x305 | 914x914x406 | 48 |
| 28530 | 9047 | 4900x6100x305 | 914x914x508 | 56 |
| 28532 | 11318 | 6100x6100x305 | 965x965x559 | 85 |
