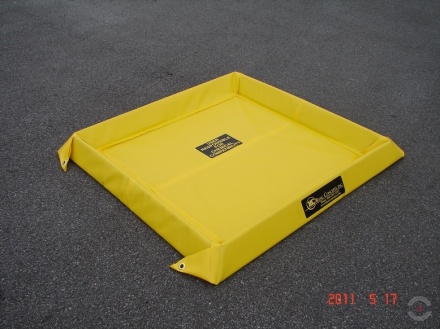

19-833 L elastic maintenance PCV baths for collecting fluids
Specification for custom-made flexible PCV baths for collecting waste water
Model No. | Capacity, L | Height of side walls, mm | Dimensions (internal), mm | Folded dimensions, mm | Weight, kg |
28414 | 16 | 51 | 600x600 | 762x762x51 | 4 |
28400 | 38 | 102 | 600x600 | 762x762x102 | 5 |
28416 | 38 | 51 | 600x1200 | 762x1372x51 | 5 |
28402 | 76 | 102 | 600x1200 | 406x762x406 | 5 |
28404 | 151 | 102 | 600x2400 | 711x711x406 | 8 |
28418 | 76 | 51 | 1200x1200 | 762x762x152 | 6 |
28406 | 151 | 102 | 1200x1200 | 508x610x406 | 9 |
28408 | 227 | 102 | 1200x1800 | 610x610x406 | 12 |
28421 | 151 | 51 | 1200x2400 | 762x762x305 | 13 |
28410 | 303 | 102 | 1200x2400 | 914x914x406 | 15 |
28422 | 167 | 51 | 1800x1800 | 610x610x406 | 14 |
28412 | 341 | 102 | 1800x1800 | 965x965x406 | 38 |
28424 | 511 | 51 | 3000x3400 | 711x711x406 | 23 |
28426 | 833 | 51 | 3000x5500 | 762x762x406 | 30 |
