WSC container storage with thermal insulation for vertical and horizontal storage

Send enquiry

WSC container storage with thermal insulation for vertical and horizontal storage

  • For storage of sensitive materials for temperature and humidity, all hazard classes.
  • Design with external walls to protect against temperature drops and compensate for temperature fluctuations.
  • Made of galvanized sheets, painted in RAL colors (optional).
  • All side walls, roof, door and floor panels completely thermally insulated, mineral wool insulation - non-combustible A2 according to DIN 4102-1, insulation thickness at least 60 mm.
  • Includes double door with cylindrical lock.
  • Container warehouse with removable truss, made of 5 mm steel sheet, welded to WZ2.2 tightness, controlled in accordance with EN ISO571-1.
  • All construction is covered with high-quality anti-corrosion water and resistant coating according to EN ISO 12949-C3.
  • At each storage level, there are grating shelves for convenient placement of constructions, containers or pallets.
  • Dibt certificate, Ü.



Type Product code Product code Product code Product code Product code Product code
With opening doors 124.300.130 124.300.230 124.300.330 - - -
With sliding doors       124.300.160 124.300.260 124.300.360
Model WSC-T-E.1-30 WSC-T-E.2-30 WSC-T-E.3-30 WSC-T-E.1-60 WSC-T-E.2-60 WSC-T-E.3-60

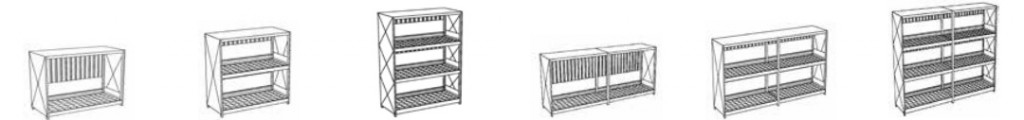

Number of rack levels 1 2 3 1 2 3
Spill bath capacity, L 450 450 650 2x450 2x450 2x650
200 L statinių kiekis ant grotelių, vnt. 10 20 30 20 40 60
200 L barrels on the chemical pallets, pcs. 8 16 24 16 32 48
200 L barrels on the EURO pallets, pcs. 6 12 18 12 24 36
Outside dimensions LxWxH, mm 3290x1440x2210 3290x1440x3180 3290x1440x560 6360x1550x2280 6360x1550x3180 6400x1550x4580
Inner dimensions LxWxH, mm 3010x1300x1730 3010x1300x1250 3010x1300x1250 3010x1300x1730 3010x1300x1250 3010x1300x1250



Download brochure
