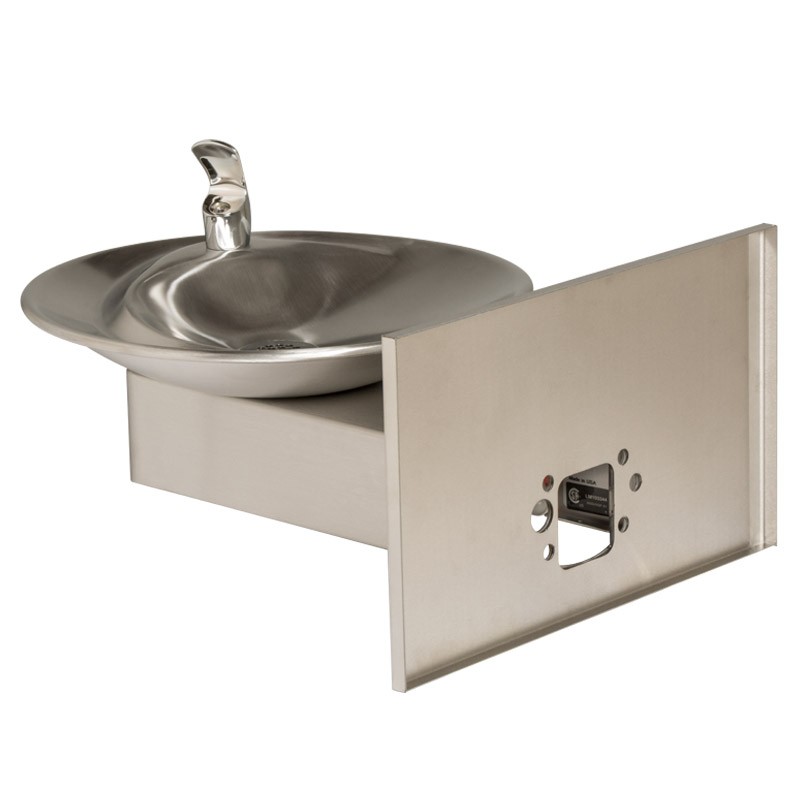

Wall mounted drinking water fountain mod.1001 BP

1001 BP Wall mounted drinking water fountain
  • Model 1001BP wall mounted barrier-free drinking fountain shall include an 1,3mm Type 304 Stainless Steel satin finish basin with integral swirl design,
  • 2,0mm Type 304 Stainless Steel wall bracket,
  • 100% lead-free waterways,
  • stainless steel satin finish back panel,
  • push-button operated stainless steel valve with front-accessible cartridge and flow adjustment,
  • polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow,
  • chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate,
  • 1-1/4" O.D. (3.2 cm) waste pipe,
  • (P-trap and stop require rear access).
Main parameters
PARAMETER
DATA
Type Wall mounted
Index 1001BP
Weight, kg 16,6
Dimensions (HxLxW), mm
1029x520x357
Yes



Download brochure
