ElegaVAR Drum-Type Diverter Valves for Pneumatic Conveying

VAR Drum-Type Diverter Valves for Pneumatic Conveying

On order

VAR Drum-Type Diverter Valves for Pneumatic Conveying

info@elega.lt Call

Documents

  • Download brochurePDF · 1.6 MBDownload

CHARACTERISTICS

VAR Drum-Type Diverter Valves for Pneumatic Conveying

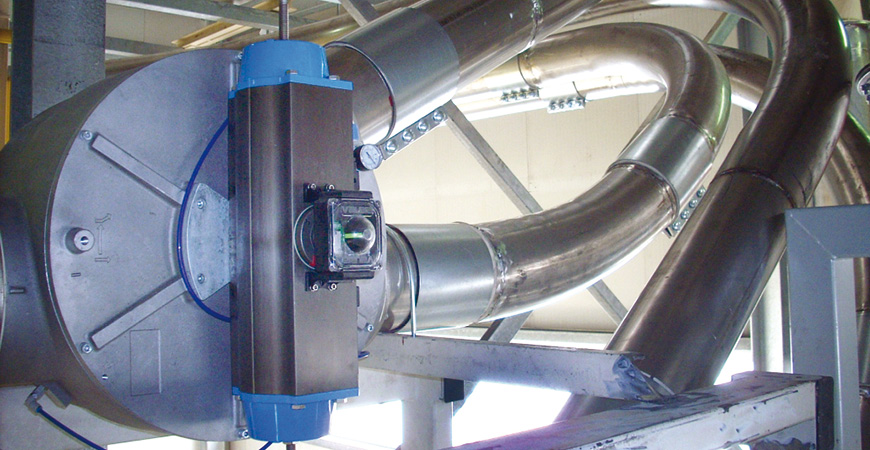

  • VAR Diverter Valves consist of a cast aluminium casing and cover, an inlet and two outlets.
  • The rotating internal drum optionally closes one of two outlets which are connected with pneumatic conveying ducts.
  • Rotation of the internal drum is activated by a pneumatic actuator.
  • Perfect sealing is guaranteed by internal, pneumatically inflatable seals.

Function:

  • VAR Diverter Valves are suitable for diverting or converting any type of powdery or granular material.
  • Commutation of the tubular exit and diversion of the material flow from one duct to another is obtained by a pneumatic actuator which activates the rotating inner drum.

Features

  • Cast aluminium alloy casing.
  • Various surface treatments depending on material handled.
  • Operating temperature: -20 °C ~ 80 °C (-4 °F ~ 176 °F).
  • Operating pressure: max. 3.5 bar (51 PSI.)
  • Closing pressure: max. 4.0 bar (58 PSI).
  • Activating pressure of pneumatic actuator: max. 5.0 bar (72.5 PSI).
  • Range includes most common pipe diameters in pneumatic conveying from 50 ~ 200 mm (2 ~ 8 in).
Benefits
  • Standard inflatable seals.
  • Lightweight and compact overall dimensions thanks to aluminium-cast design.
  • Minimum pressure drop thanks to special design features.
  • Works in both directions as diverter or converter.
  • Contamination-free.
  • Maintenance-friendly.
