CHARACTERISTICS

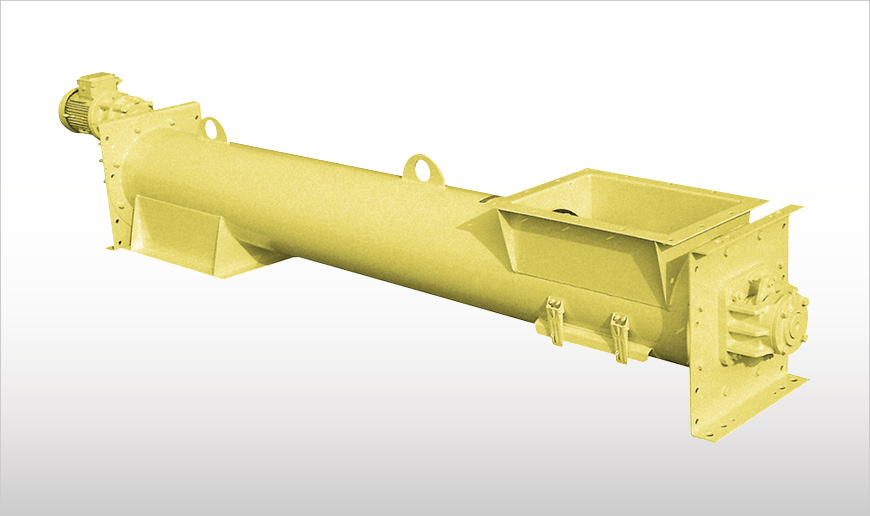

Tubular Trough Screw Conveyors-CAO. Gentle material handling, low residue
- The modular CAO Tubular Screw Conveyor system is highly versatile offering numerous solutions for conveying powdery or granular materials.
- CAO Screw Conveyors are manufactured from carbon steel with suitable surface finishing.
- They consist of a tubular trough equipped with at least one inlet and outlet spout, an end plate at each tubular trough end, helicoid screw flighting welded on a centre pipe with coupling bush at each end, two end bearing assemblies complete with adjustable shaft seal, and a number of intermediate hanger bearings depending on the overall length of the screw conveyor. Furthermore, CAO Tubular Screw Conveyors are equipped with a gear motor appropriate for the application.
- Depending on the material to be handled, CAO Tubular Screw Conveyors come in a light or medium heavy-duty design.
- Both versions are available with ATEX, Zone 22 certification.
Function
- The light-duty version, CAO_L, is mainly used for feeding and conveying flour and flour milling by-products.
- The medium heavy-duty version, CAO_P, is mainly used in animal feed milling with products such as cereals, meals and milling by-products.
- In general, CAO Tubular Screw Conveyors and Feeders are suitable for applications that require minimum material residue and maximum conservation of particle size of the material when handled.
Features
- Standard length tubular sections.
- Helicoid flighting welded on centre pipe.
- Powder-coated.
- Flanged end bearing assemblies protected against material infiltration by adjustable shaft seals.
- Wide range of intermediate hanger bearings designed for specific applications (self-lubricating versions included).
- Circular, square or rectangular inlet and outlet spouts complete with drilled WAM standard flanges.
- Robust cast iron body, flanged end bearing assemblies with external bearings and manually adjustable packed gland seals.
- Maintenance-free (or non) intermediate cast or fabricated hanger bearings with self-lubricating and other type slide bushes.
- Splined shaft couplings.
Drive unit mounted at inlet or outlet end:
- Bare shaft
- Direct compact gear motor drive
- Direct gear motor drive with semi-elastic coupling
- Offset gear motor drive with chain transmission
- Offset drive with belt transmission
For light-duty version:
- Robust tubular trough in modular flanged sections in carbon or stainless steel.
- Light-duty helicoid flighting welded on centre pipe in carbon or stainless steel.
For medium heavy-duty version:
- Medium heavy-duty carbon steel helicoid flighting welded on centre pipe.
- Robust tubular carbon steel trough in modular flanged sections.
Benefits
- Industrial quality product.
- Modular design features ensuring matching spare parts.
- Worldwide spare parts availability through WAM subsidiaries.
Options
- Circular, square, or rectangular substitute/additional inlet/outlet spouts with or without connecting flange.
- Trough feet.
- Overflow hatches.
- Screws (augers) in various configurations (ribbon flight, paddles, others).
- Special shaft seals (gas or air-purged, grease chamber, others).
- Different drive configurations.
- Jacketed outside tube.
- Drop bottom tube.
- Slide valves.
- Flush outlets.
- For medium heavy-duty version.
- Screws manufactured from special wear-resistant materials.
BOTH TYPES AVAILABLE WITH ATEX, ZONE 22 CERTIFICATION.
