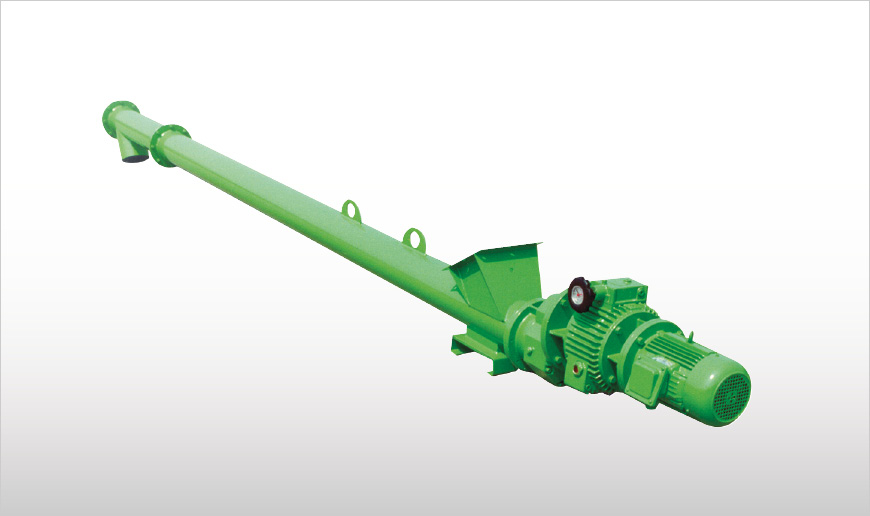

Tubular Ribbon Flight Screw Feeders - PR
Tubular Ribbon Flight Screw Feeders - PR. Accurate feeding
CHARACTERISTICS
Tubular Ribbon Flight Screw Feeders - PR. Accurate feeding
- A specialised version of the TU-type screw conveyor, configured in particular for use with hydrated lime.
- The PR-type Tubular Screw Feeder comes with a ribbon flight screw.
- For process reasons this screw feeder type is often equipped with a variable speed drive.
Function
- PR Ribbon Flight Screw Feeders ensure uniform discharging and feeding of lime in special dosing plants from a silo into a dissolver or micro-feeding device.
Features
- Outside tube diameters: 70 mm (2.8 in), 82 mm (3.2 in), 114 mm (4.5 in), 168 mm (6.6 in).
- Tubular casing in standard flanged sections with one section made to measure.
- Standard inspection hatch beneath inlet.
- Ribbon flight screw with splined shaft couplings.
- Direct-mounted WAM gear reduction unit (with or without mechanical variable speed drive) with incorporated, fully protected, maintenance-free end bearing assembly and self-adjusting packing gland seal.
- Standard flange-mounted electric motor.
- No intermediate hanger bearings.
- Feed rates: 70 ~ 4,500 litres per hour (0.04 ~ 2.6 cfm).
- Installed drive power: 0.37 kW (0.5 HP) ~ 3.0 kW (4.0 HP).
Benefits
- Uniform material flow.
- High feeding accuracy.
- No flushing.
Options
- Fluidised inlet hopper.
- Fluidisation pads.
