Model | Outer dimensions, width, mm | Outer dimensions, length, mm | Outer dimensions, hight, mm | Inner dimensions, width, mm | Inner dimensions, length, mm | Inner dimensions, hight, mm | Weight, kg | Volume, L | Coef. KW/M2x°C |
Bac50 | 610 | 410 | 485 | 480 | 280 | 330 | 17 | 44 | 0.46 |
Bac55 | 600 | 500 | 580 | 415 | 315 | 410 | 16 | 53 | 0.38 |
Bac75 | 800 | 600 | 438 | 652 | 452 | 260 | 18 | 77 | 0.39 |
Bac120 | 765 | 600 | 614 | 610 | 445 | 430 | 30 | 117 | 0.36 |

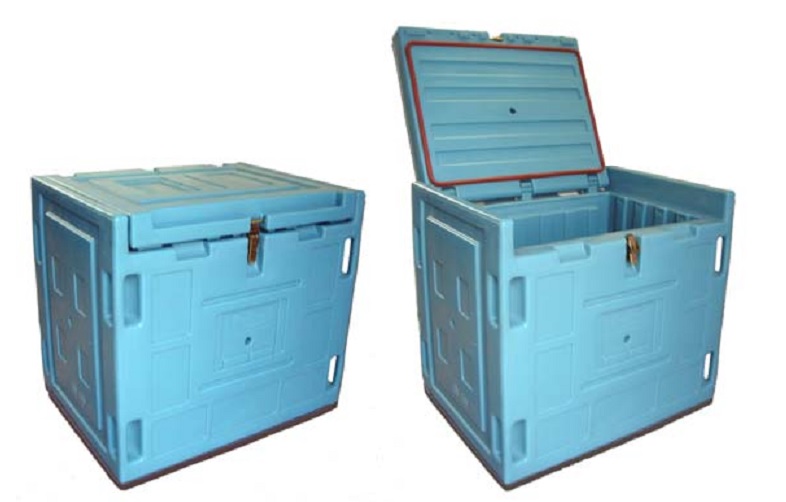

Bac130 | 800 | 600 | 715 | 630 | 420 | 520 | 31 | 138 | 0.40 |

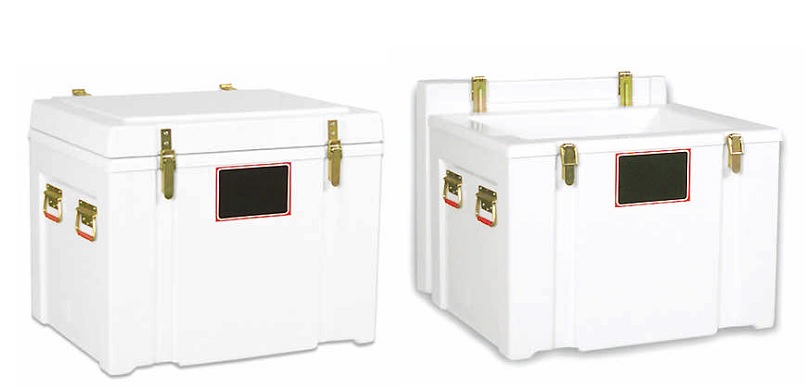

Bac150 | 800 | 640 | 660 | 625 | 470 | 480 | 32 | 141 | 0.34 |

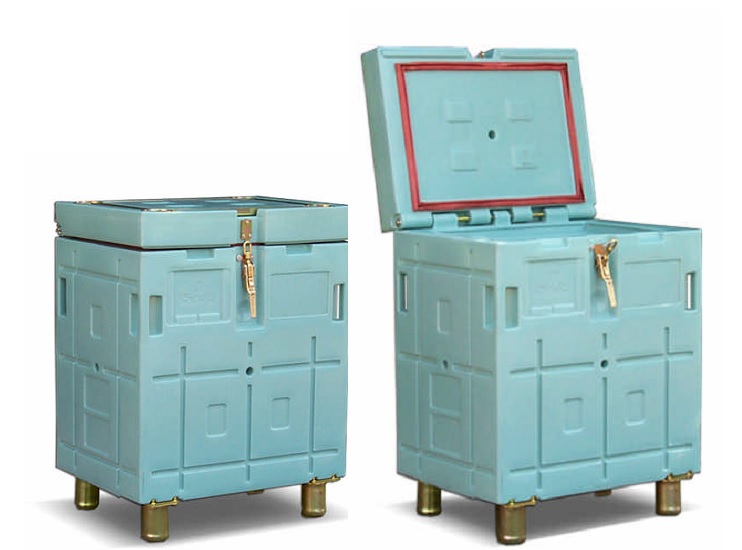

Bac160 | 800 | 600 | 1050 | 580 | 370 | 700 | 50 | 150 | 0.30 |
Bac250 | 980 | 900 | 650 | 800 | 720 | 455 | 58 | 262 | 0.35 |

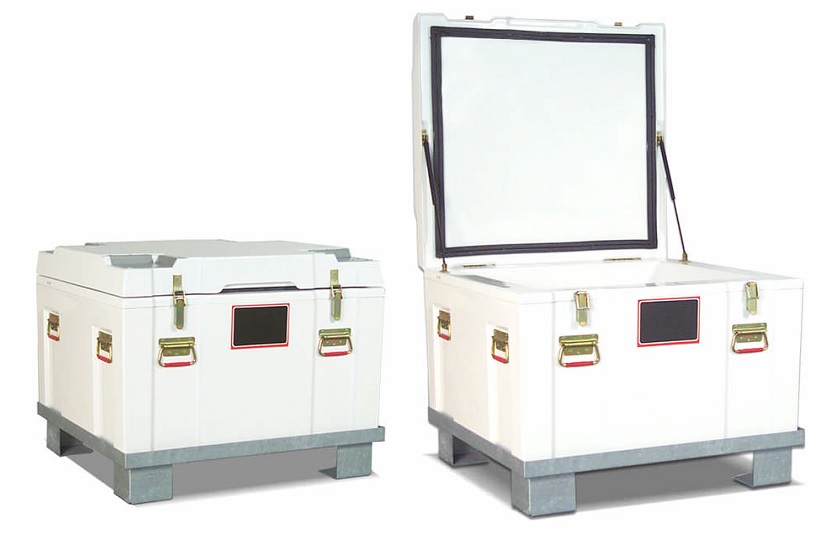

Bac260 | 996 | 926 | 810 | 800 | 720 | 455 | 73 | 262 | 0.35 |
Bac420 | 1200 | 800 | 1050 | 1000 | 600 | 700 | 90 | 420 | 0.27 |
Bac480 | 1200 | 1000 | 970 | 1000 | 800 | 600 | 112 | 480 | 0.27 |
Bac600 | 1200 | 1200 | 970 | 1000 | 1000 | 600 | 122 | 600 | 0.25 |
