Single shaft shredder SR for plastic recycling
Documents
CHARACTERISTICS

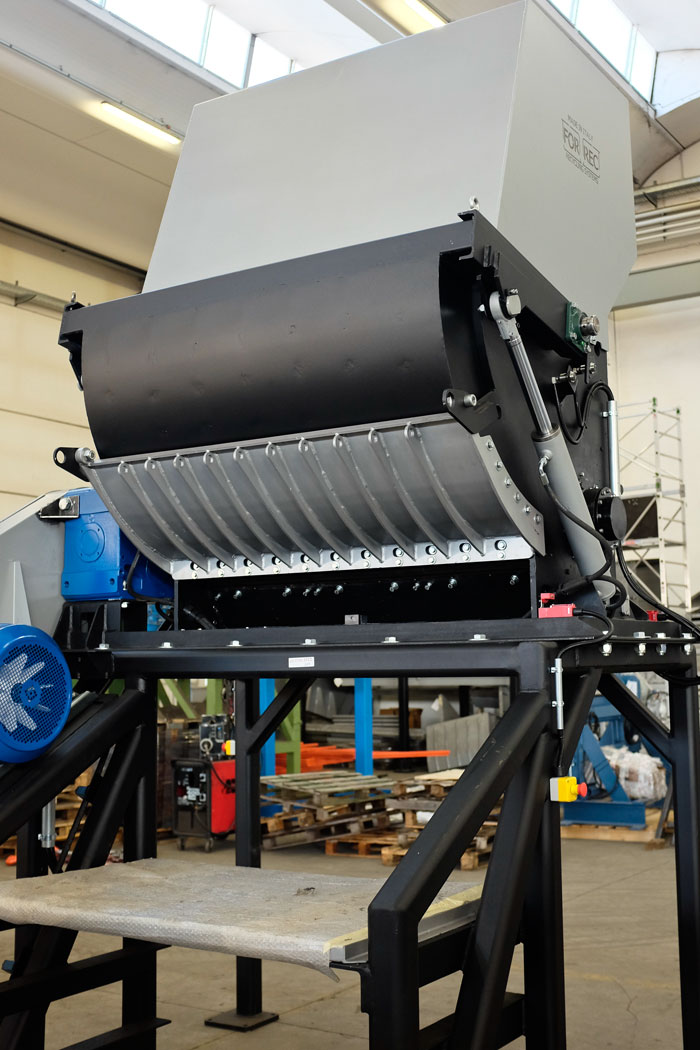

Single shaft shredder SR for plastic recycling
- SR series single shaft grinders are suited to process lightweight materials and for applications that require low productivity.
- They produce homogeneous sized output material thanks to the screen.
- The exclusive interchangeable plate system guarantees fast maintenance with reduced downtime.
- The SR single shaft grinders, thanks to the special adopted solutions, allow for significant energy savings.
Technologies:
- High number of rotations (80 rpm);
- Single shaft with parallel axis engine reducer;
- Configurable automatic gear reversal;
- Bearings outside of the cutting chamber;
- Automatic greasing managed by PLC;
- Use of high quality steels;
- Easily interchangeable blades;
- Cutting system fixed without welding.
SR DATA
| Type | Application | Overal dimensions, mm | Rotor dimensions, mm | Weight, kg | Power, kW | Blades | Blades thickness, mm |
|---|---|---|---|---|---|---|---|
| SR1500, electric | Light plastics, wood, paper - cardboard, electrical wires | 2000 x 2200 x H2400 | L1000 x Ø295 | 4000 | 22 | 34 pcs., standard | 48 x 48 x 25 |
| SR2000 electric | Light plastics, wood, paper - cardboard, electrical wires | 2700 x 2200 x H2400 | L1500 x Ø295 | 6500 | 37 | 50 pcs., standard | 48 x 48 x 25 |
