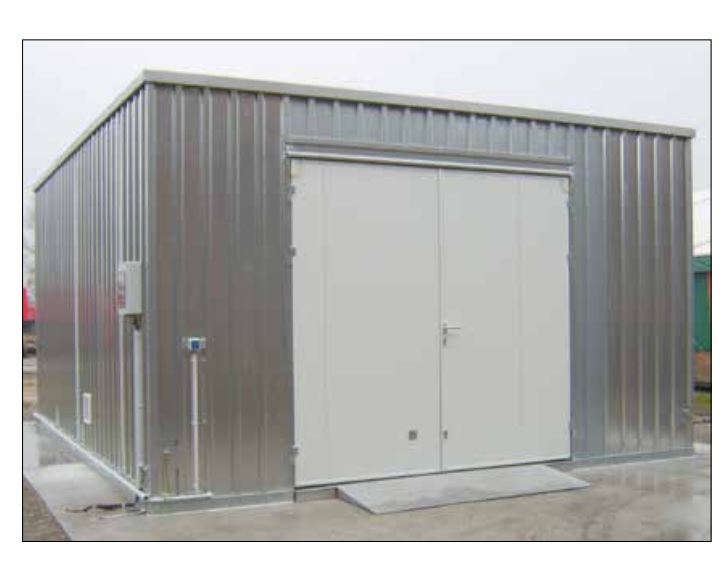

Safe WS LH type storage containers

Send enquiry

Safe WS LH type storage containers

  • With water storage, you can quickly and cheaply create a warehouse for dangerous hazardous materials.
  • The sturdy construction is made of specially profiled galvanized sheet steel.
  • Heavy duty roof up to 180 kg / m2.
  • Galvanized double door with lock.
  • Integrated protective floor elements made of 3 mm sheet steel with removable, galvanized grooves, meet the requirements of WHG, marked Ü under StawaR.
Type Product code Product code Product code
Galvanized 124.530.007 124.530.008 124.530.009
Model WS LH 5x6 WS LH 5x8 WS LH 5x10
Outside dimensions LxWxH, mm 5100x6200x3000 5100x8200x3000 5100x10200x3000
Inner dimensions LxWxH, mm 4900x6000x2690 4900x8000x2690 4900x10000x2690
Occupied area, m2 30 40 50
Floor bath load, kg / m2 5000 5000 5000
Spill bath capacity, L 6x200 8x200 10x200

Optional
Name Product code
Shelving racks, vertical 124.590.201
Shelf frames, horizontal 124.590.198
Level from the platform grille (AxG) 800x500 mm 124.590.202
Level from the platform grille (AxG) 1800x500 mm 124.590.203
Level from the platform grille (AxG) 2600x500 mm 124.590.204
Level from the platform grille (AxG) 1000x1000x80 mm 124.590.205
Galvanized plate, A 500 mm rails, m 124.590.206



Download brochure
