Reinforced aluminum profile SIGMA SLOT10 135x135mm
Code: SLOT10
On order
Reinforced aluminum profile SIGMA SLOT10 135x135mm
Reinforced aluminium profile SIGMA SLOT10 135x135mm
Documents
CHARACTERISTICS
Reinforced aluminium profile SIGMA SLOT10 135x135m
-
Strong reliable connections can be made by this profile which has a strong physical structure.
-
It can be used n production of bodies of heavy construction machines.
-
As bridge profile at CNC machines and on special designs.
-
As it has wide usage area, it also can be used on linear motion system.
-
Profiles are made of special aluminum, which is also known as the 6063.
-
Profiles surface is coated with the ELOXAL, which is resistant to corrosion.
-
It should not be primed or painted, such as steel structures.
Technical data:

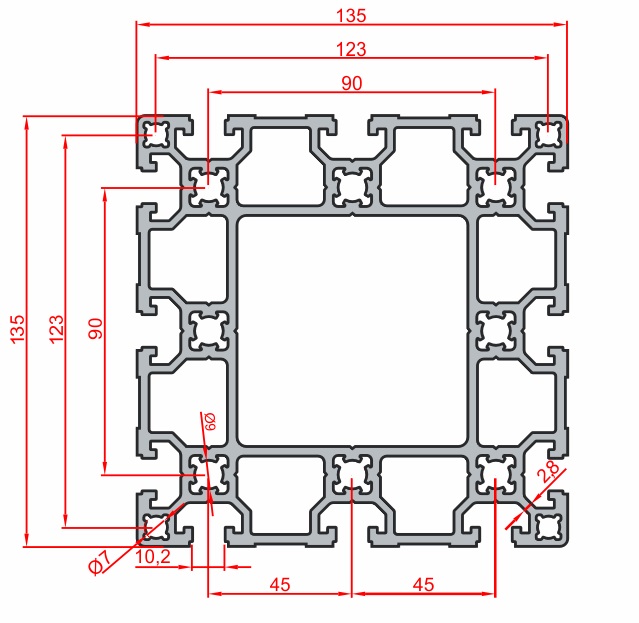

- dimensions: 135x135 mm;
- aluminium type: 6063;
- one profile length: 6000 mm;
- Ix : 897,64 cm4;
- Iy : 897,4 cm4;
- Wx: - cm3;
- Wy: - cm3;
- the relative weight: 12.02 kg / m.
