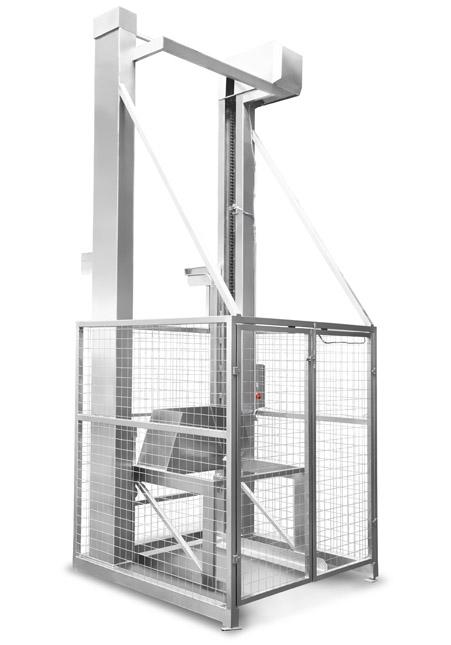

PSS LD 950 Lifting Device, capacity 950 kg
Code: LD 950
On order
PSS LD 950 Lifting Device, capacity 950 kg
Key parameters
| Parameter | PSS-LD 950 |
|---|---|
| Input, kW | 2,2 |
| Weight of the device (F 4855 mm) kg | 1250 |
| Transport dimensions (LxWxH), mm | 5050x2200x2500 |
| Capacity kg. | 950 |
| Tipping angle 0 | 35 |
| Lifting speed, m/min. | 4,7 |
| Control voltage | 3/PE/N, 50Hz, 230/400V, TN-C-S |
CHARACTERISTICS
PSS LD 950 Lifting Device, capacity 950 kg
- PSS LD Lifting devices are designed for the food industry operations for lifting and tipping of plastic Big boxes by double column lift.
- These devices significantly facilitate the handling of processed materials, which are lifted to individual machines and devices by them for further processing.
- The Big box filled with a material is pushed into the tipping fork that fast and easily lifted the material into a machine, where it is further processed.
OPTIONS
-
Fork for 200 l trolley.
-
Chute for lifting fork.
-
Special voltages and frequencies (standard: 3x400V - 50 Hz).
-
Timer for automatic return (loader is to be mounted in a cage.
-
Timer for automatic return including the stoppage 500 mm above the floor.
-
Automatic STOP before emptying (loader to be restarted).
