PSS G 250 Giraffe A or B, capacity up 12,0 t / h
CHARACTERISTICS
PSS G 250 Giraffe A or B, capacity up 12,0 t / h
- PSS Giraffes (worm conveyors) are devices designed to transport processed material into appropriate machines.
- The PSS Giraffes can be used as supplementary devices to each machine individually or as a part of the production lines, which largely contribute to the automation of production.
- Their main advantage is that they ensure the smooth running of production itself, and facilitate the work with the processed material.
- The saving of time, energy and involved work is ensured thanks to the PSS Giraffes.
- PSS Giraffes are supplied with a system of two worms.

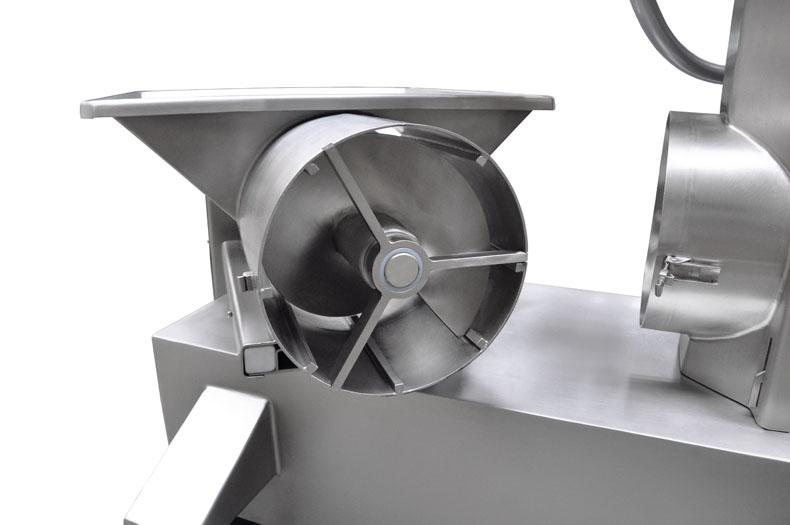

- The material, prepared for processing, is fed into the PSS Giraffe hopper, from which it is moved fast and gently by the horizontal worm to the vertical worm and then to the outlet.
- The height of the PSS Giraffe outlet can be adapted to individual requirements and needs of a customer.
OPTIONS:
-
Movable stand – horizontal and vertical part
-
Emergency stop
-
Pneumatic slip outlet, fixed
-
Rotary sleeve, pneumatic
-
Accessory trolley
-
Frequency converter of the vertical worm
-
Frequency converter of the horizontal worm
Technical data:
| PARAMETER | PSS-G250 A | PSS-G250 B |
|---|---|---|
| Horizontal worm input, kW | 2,2 | 2,2 |
| Vertical worm input, kW | 4,0 | 4,0 |
| Machine weight, kg | 490 | 600 |
| Dimensions (LxWxH), mm | 1617x1188x1536-2509 | 2651-3747x1176x1527-3222 |
| Capacity, kg/h | 12.000 | 12.000 |
| Worms diameter, mm | 250 | 250 |
| Voltage network | 3/PE/N, 50Hz, 230/400V, TN-C-S | 3/PE/N, 50Hz, 230/400V, TN-C-S |
| Control voltage | 230/24 V AC | 2 |
