Model 7101 pedestal-mounted eyewash station

Send enquiry
Model 7101 pedestal-mounted eyewash station
  • Model 7001 pedestal-mounted eye/face wash shall include
  • Omni-Flo wrap around eye/face wash with integral yellow plastic dust cover,
  • chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem,
  • chrome-plated brass in-line 50 x 50 mesh water strainer,
  • Omni-Flo foam filter.
  • unit shall also include Schedule 40 hot-dipped galvanized steel pipe and fittings,
  • powder-coated cast-iron 9" diameter floor flange, foot treadle.
Main parameter
Name Parameter
Type The wall-mounted
Index 7101
Weight, kg 2,4

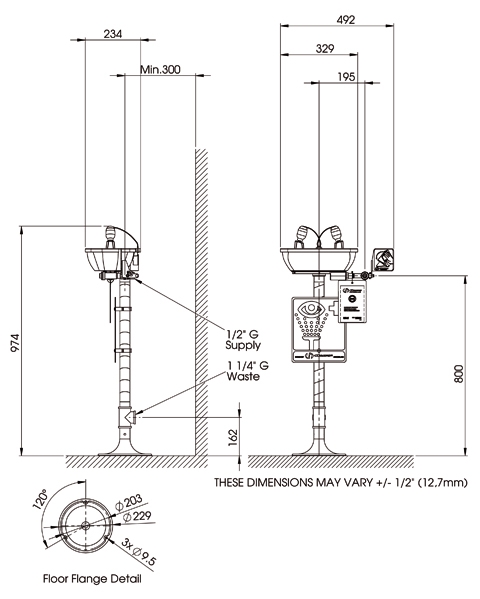

Dimensions HxLxW, mm
 974x492x234
Woter inlets   1/2'' G
Water outlet  1 1/2'' G
Accessibility  No
