Metall detector APEX AP 100

Send enquiry

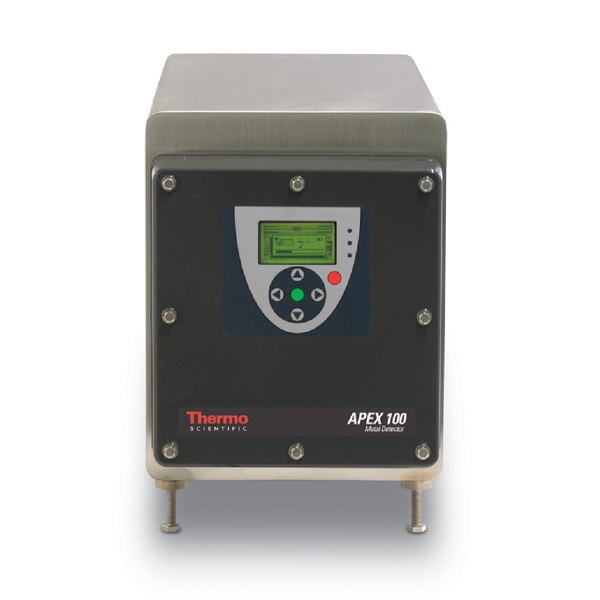

Metal detector APEX AP 100
Metal detection hole dimensions: width from 50 to 170 mm; height 50-600 mm
  • Air Supply: 5.5 bar (80 psi);
  • IP Rating: IP 69K, Type 3 enclosure, ATEX zone 22, hazardous
  • Languages: English, Spanish, French, German, Italian, Dutch,
  • Description: APEX 100 Metal Detector
  • CSAus: cCSAus, CE, ATEX zone 22
  • Model: 100
  • Certifications/Compliance: cCSAus, CE, ATEX zone 22
  • Communications: Optional modbus serial or ethernet modules
  • Construction: Stainless steel 304 straightlined case; ABS plastic control panel
  • Electronic Supply :85 - 260 volts AC single phase plus earth ground; 47 - 65 Hz, 100 watts maximum
  • Input Applications: Speed Sensor, Keylock, Product Select 1, Product Select 2, Infeed PEC, Reject Confirmation 1 and Bin Full, External Suppression, External Alarm and External Reset
  • Input Types: 6 Inputs - Active 12v DC+12 volt auxiliary supply for input sensors
  • Manufacturing Quality: ISO9001 certified
  • Operating Temperature: -10°C to +40°C (+14°F to +104°F)
  • Output Applications: Reject 1, Reject 2, AuditCheck, Fault, Alarm, Warning and QA lamp
  • Output Types: 6 Relays outputs; Relays: 250 volt AC 2 amp max. 50 volt DC 1 amp max.
  • Product Speed: 0.5 m/min. (1.7 ft./min.) to 1,000 m/min. (3,300 ft./min.)
  • Protection: IP 69K, Type 3 enclosure, ATEX zone 22, hazardous location Class II Division 2 Groups F and G
  • Relative Humidity: 20 - 80% non-condensing
  • User Manual Languages: English, Spanish, French, German, Italian, Dutch, Chinese, Czech, Russian, Polish, Thai, Korean and Brazilian Portuguese
  • Input Allocation: Speed Sensor, Keylock, Product Select 1, Product Select 2, Infeed PEC, Reject Confirmation 1 and Bin Full, External Suppression, External Alarm and External Reset
  • Output Allocation: Reject 1, Reject 2, AuditCheck, Fault, Alarm, Warning and QA lamp.
Download brochure
