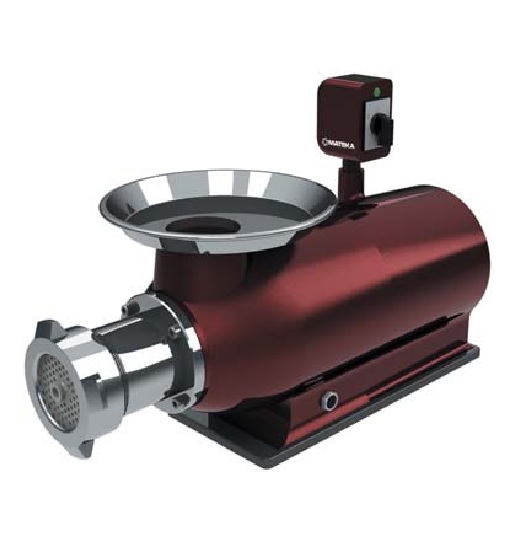

Мeat mincer, stainless body 400-600 kg per hour
Code: 400-600
On order
Мeat mincer, stainless body 400-600 kg per hour
Мeat mincer- stainless body 400/600 kg per hour. EAL-22 and EAL-32
CHARACTERISTICS
Мeat mincer- stainless body 400/600 kg per hour. EAL-22 and EAL-32
- The meat mincer with stainless steel body with its powerful motor is suitable for medium-sized establishments.
- It provides easiness in cleaning due to its AISI 304 stainless steel body.
- The head, worm and ring are nickel coated.
- Only the meat chamber and the body are easily cleaned with warm soapy water.
- The piece of meat is minced due to its strong reductor.
- It is safe when hand protection device and beetle is used.
- With the ability to run back and forth; if any meat is stuck, the machine can be reverse run maximum for 2 seconds after the motor is completely stopped.
- Thus, the stuck meat is released.
| Parameter/ Model | EAL 22t | EAL 22m | EAL 32t | EAL 32m |
|---|---|---|---|---|
| Intake diametr, mm | 82.5 | 82.5 | 82.5 | 82.5 |
| Knifes, grids, worm | World standard No.22 knife, perforated plate and worm | World standard No.22 knife, perforated plate and worm | World standard No.22 knife, perforated plate and worm | World standard No.22 knife, perforated plate and worm |
| Body material | AISI 304 stainless steel body | AISI 304 stainless steel bod | AISI 304 stainless steel bod | AISI 304 stainless steel bod |
| Grinding camera | AISI 304 stainless steel body | AISI 304 stainless steel bod | AISI 304 stainless steel bod | AISI 304 stainless steel bod |
| Reducer | Cast iron strong reductor | Cast iron strong reductor | Cast iron strong reductor | Cast iron strong reductor |
| Head | Nickel coated cast iron ring, worm and head | Nickel coated cast iron ring, worm and head | Nickel coated cast iron ring, worm and head | Nickel coated cast iron ring, worm and head |
| Max. capacity kg./ hour | 400 | 400 | 400 | 400 |
| Power | AC 380V 3 NP Three phase | AC 220V 1 NP Single phase | AC 380V 3 NP Three phase | AC 220V 1 NP Single phase |
| Packing dimension, cm | 40 x 78 x 50 | 40 x 78 x 50 | 40 x 84 x 53 | 40 x 84 x 53 |
| Packing volume, m3 | 0,16 | 0,16 | 0,18 | 0,18 |
| Packing weight, KG | 61.0 | 61.0 | 76.0 | 76.0 |
