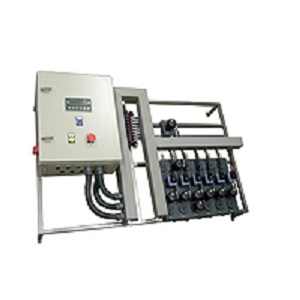

MASTER TUNNEL
- Multi-tunnel system with PLC
- Multi-Tunnel system for dosing chemical products (liquids or powder) in different modules up to four tunnel washers.
Main features
- The system can dose eight chemical products and two powders in ten different modules in various tunnel washers.
- Automatic recognition system of the washing formulas.
- The pumps used operate pneumatically and are made from materials which are compatible with the products to be dosed.
- They do not require any type of electrical connection or control solenoid valves.
- For controlling the pneumatic valves, small solenoid valves are used, which allow quick opening and closing hence obtaining greater dosing control.
- Compact PVC block system with pneumatic membrane valves (EPDM + TFM).
- Possibility to have a manifold dedicated only to dosing chlorine.
- The programming of the various washing programs is carried out in g/kg of washing.
- Considering the capacity of each washing machine, the density of the chemical product and its concentration, the system automatically calculates the operating times of each dosage.
- Possibility to connect a PC or a PDA to manage all the system parameters simply and intuitively, such as the configuration, the programming, the calibration and the visualisation of the alarms, hence making the operator’s job easier.
