Linear Motion Systems Rack Bridge Module 80x80 mm

Send enquiry

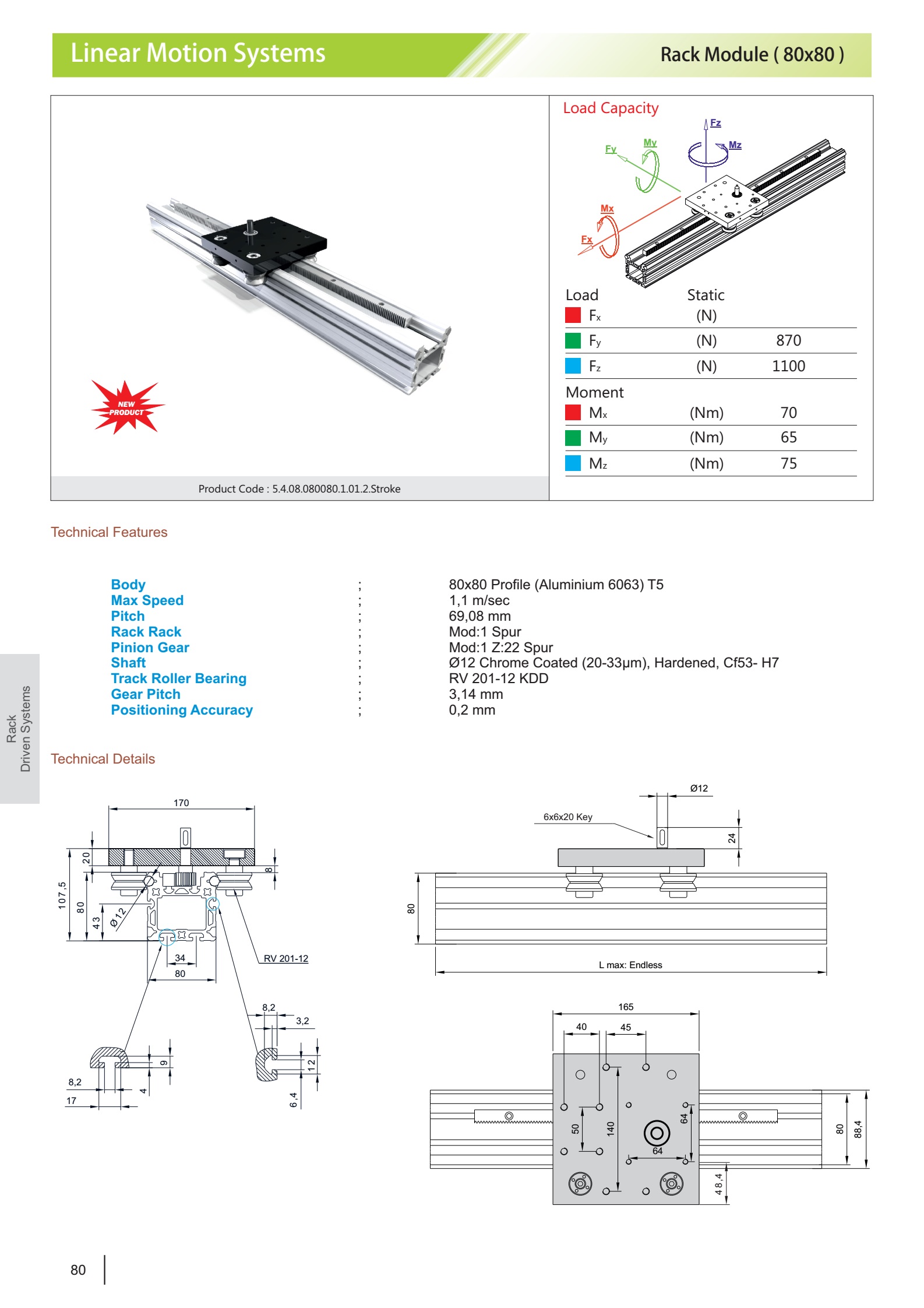

Linear Motion Systems Rack Bridge Module 80x80 mm
Product index: 5.4.08.080080.1.01.2
  • Body: 80x80 Profile (Aluminium 6063) T5;
  • Max Speed: 1.1 m/s.;
  • Pitch: 69.08 mm;
  • Rack Gear: Mod:1 Spur ;
  • Pinion Gear: Mod:1 Z:22 Spur;
  • Shaft: Ø12 - Ø20 Chrome Coated (20-33μm), Hardened, Cf53- H7;
  • Track roller bearing: RV 201-12 KDD;
  • Gear Pitch: 3.14 mm;
  • Positioning Accuracy: 0.2 mm.
