ElegaLinear motion system closed block guidance 38x80, 60x60, 80x80 mm

Linear motion system closed block guidance 38x80, 60x60, 80x80 mm

Code: 38x80
On order

Linear motion system closed block guidance 38x80, 60x60, 80x80 mm

info@elega.lt Call

CHARACTERISTICS

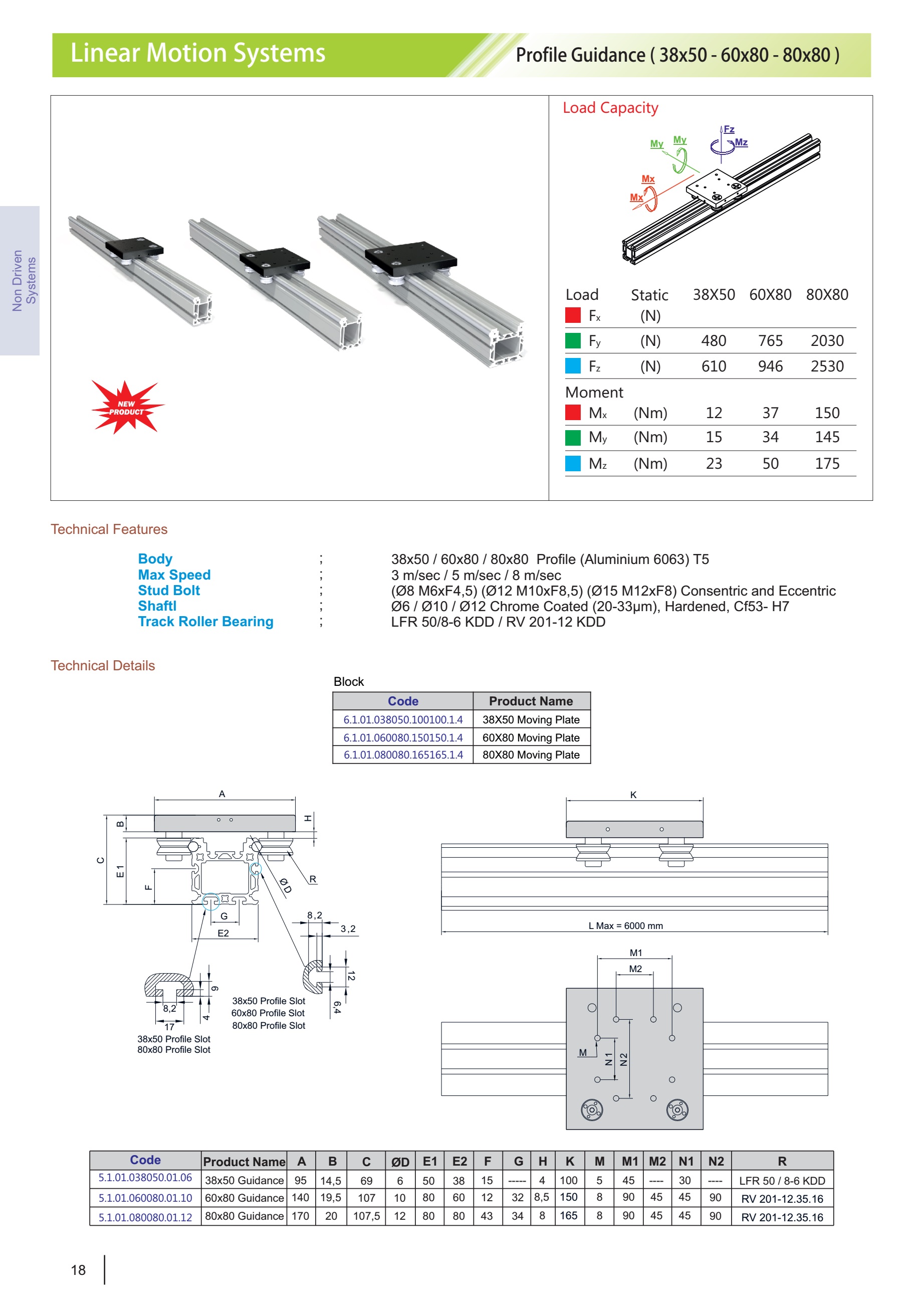

Linear motion system closed block guidance 38x80, 60x60, 80x80 mm

When ordering please specify the product code and quantity. Product indexes see. Annexes

  • To maintan linear motion;

  • Non drive system;

  • Construction body: 38x50, 60x80, 80x80 mm profile (aliuminium 6063) T5;

  • Max speed: 3-5-8 m/sek.;

  • Stud bolt: Ø 8 M6 x F8,5; Ø 12 M10 x F8,5; Ø 15 M12 x F8,5 Consentric and Eccentric;

  • Linear Shaft: Ø6-2012 Chrome Coated (20-33μm), Hardened, Cf53- H7;

  • Track roller bearing: LFR 50/8-6 KDD / RV 201-12 KDD;
