Linear motion axis ballscrew module DKZM 15 - 20

Send enquiry
Linear Motion Systems DKZM Axis ballscrew module 15-20 mm
When ordering please specify the product code and quantity.
Product indexes see. Annexes

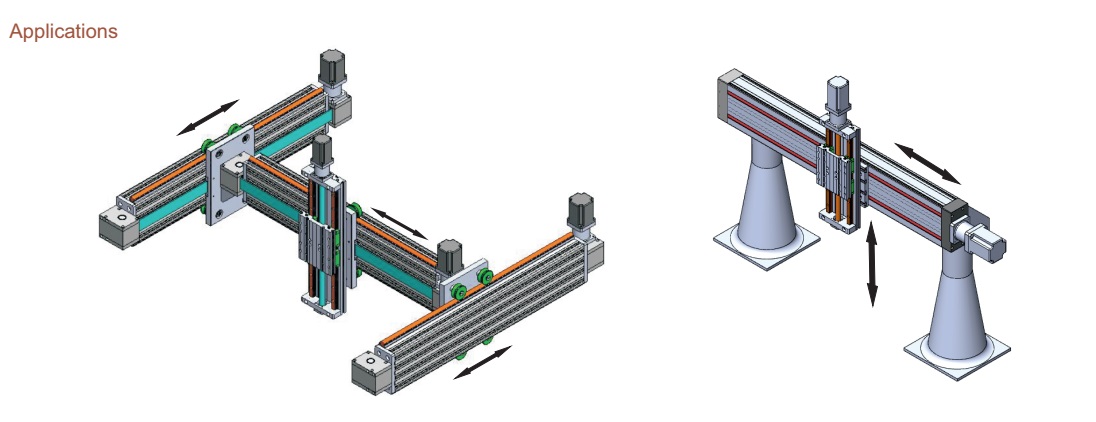

  • Used for linear movement to maintain;
  • Drive: ballscrew;
  • Body: 22x140 - 27x170 Profile Aluminium (6063) T5;
  • Max speed:  0,12 - 0,38 - 0,13 - 0,52 m/s;
  • Pitch: 5 mm - 16 mm - 20 mm;
  • Ballscrew: Ø16-05 - 16-16 - 20-05 - 20-20 pitch;
  • Flange nut: Ø16-05 - 16-16 - 20-05 - 20-20  FSU type;
  • Linear rail: 15-20 linear rail;
  • Linear block: 15-20 linear block;
  • Positioning accuracy: 0,01 mm.
