Lightweight aluminum profile SLOT10 90x90mm
Code: SLOT10
On order
Lightweight aluminum profile SLOT10 90x90mm
Lightweight aluminium profile SLOT10 90x90mm
Documents
CHARACTERISTICS

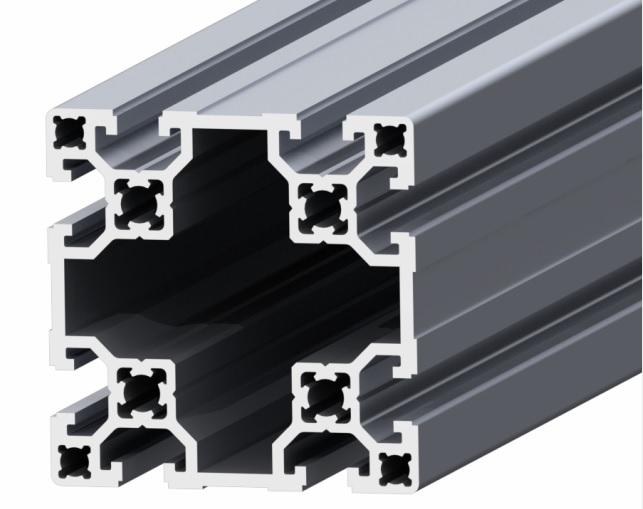

Lightweight aluminium profile SLOT10 90x90mm
-
90x90 Industrial Light Profile comes into prominence thanks to its ideal structure for systems that require middle resistance.
-
Besides it is used for CNC chassis and feet, it is favourite for applications in long dimensions.
-
Profiles are made of special aluminum, which is also known as the 6063.
-
Profiles surface is coated with the ELOXAL, which is resistant to corrosion.
-
It should not be primed or painted, such as steel structures.
Technical data:
- dimensions: 90x90 mm;
- aluminium type: 6063;
- one profile length: 6000 mm;
- Ix : 192,84 cm4;
- Iy : 192,84 cm4;
- Wx: 42,8 cm3;
- Wy: 42,8 cm3;
- the relative weight: 5.58 kg / m.
