FLEXFLO MBW Micro-Batch Feeders for powdery or granular materials
MBW Micro-Batch Feeders for continuous volumetric feeding of powdery or granular materials
Documents
CHARACTERISTICS

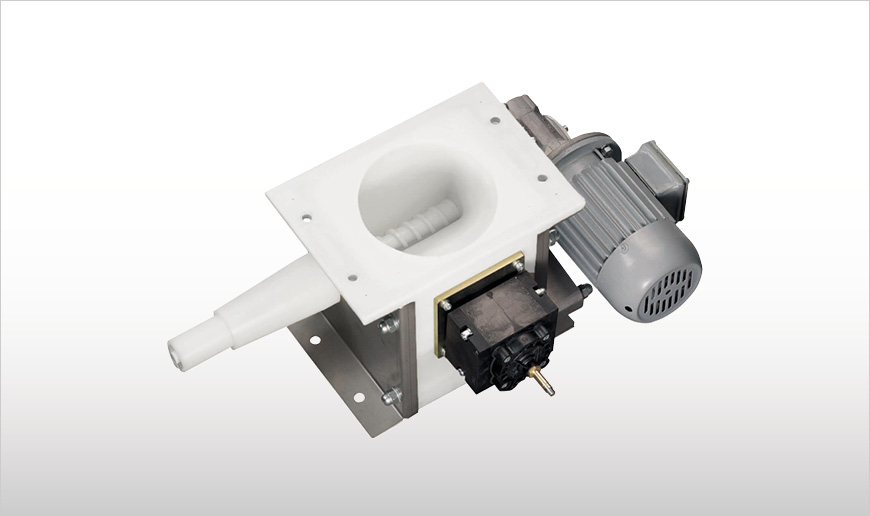

FLEXFLO MBW Micro-Batch Feeders
Function
- MBW series Micro-Batch Feeders for powder and granular material feeding are particularly suitable for free flowing and moderately flowing materials which do not tend to pack under pressure.
- Fed via a bag opening hopper, a bulk bag discharger, or another feeding device, the SINT engineering polymer FLEXFLO body, with its particular geometry, ensures constant material flow and dosing through the feeder screw.
- To further facilitate material flow an additional pneumatic activator can be fitted on request.
- Typically MBW Micro-Batch Feeders are used in plastics processing and animal feed milling, as well as in environmental technology in polyelectrolyte dosing systems.
Features
- 3 sizes offering the following feed rates: 1.5 ~ 630 dm3/h (0.05 ~ 22 cfh).
- SINT engineering polymer body manufactured from a casting process, complete with stainless steel end plates.
- Internal body geometry ensuring free material flow.
- Wide range of interchangeable SINT engineering polymer or stainless steel feeder tools.
- Minimum clearance between screw flight and feeder pipe.
- Cavity for injection of compressed air.
- High resistance to abrasion and corrosion.
- Wide range of interchangeable components.
Benefits
- Easy, quick cleaning due to non-stick engineering polymer surface.
- Comfortable maintenance due to small number of components.
- Cavity for injection of compressed air to improve self-cleaning.
- Minimum clearance between screw flight and feeder pipe ensuring high accuracy feeding.
- Excellent price-quality ratio.
Options
- Feeders manufactured from FDA and EN-approved, food-grade SINT engineering polymer.
- Vertical outlet.
- Pneumatic activator: supplies air through body cavity ensuring free movement of the walls and, therefore, unimpeded material flow inside the feeder (air flow can be controlled by solenoid valve or pneumatic pulse).
