ElegaEspecially lightweight rectangular aluminum profile SLOT10 45x90mm

Especially lightweight rectangular aluminum profile SLOT10 45x90mm

Code: SLOT10
On order

Especially lightweight rectangular aluminum profile SLOT10 45x90mm

Especially lightweight rectangular aluminium profile SLOT10 45x90mm

info@elega.lt Call

Documents

  • Download brochurePDF · 11.8 MBDownload

CHARACTERISTICS

Especially lightweight rectangular aluminium profile SLOT10 45x90mm

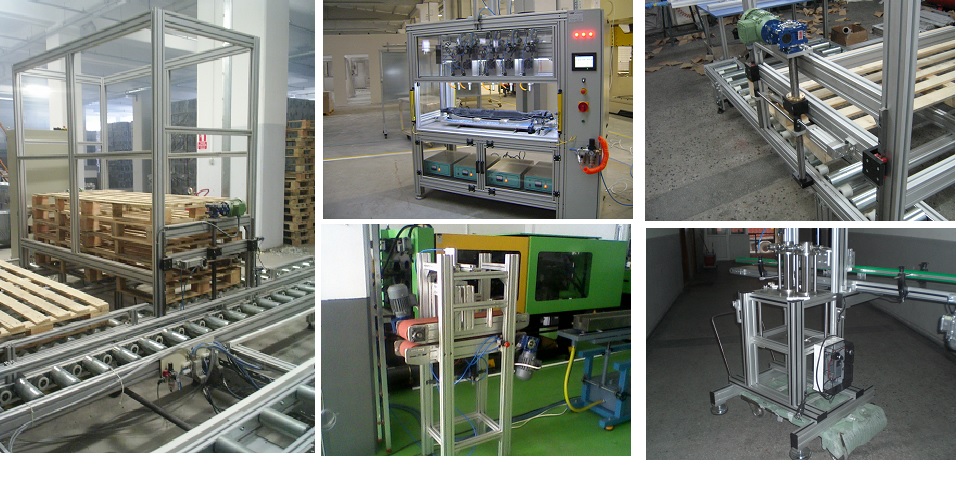

  • It is thin-structured which is used for low vibrating machine chassis that carry light load and light constructions.
  • Profiles are made of special aluminum, which is also known as the 6063.
  • Profiles surface is coated with the ELOXAL, which is resistant to corrosion.
  • It should not be primed or painted, such as steel structures.

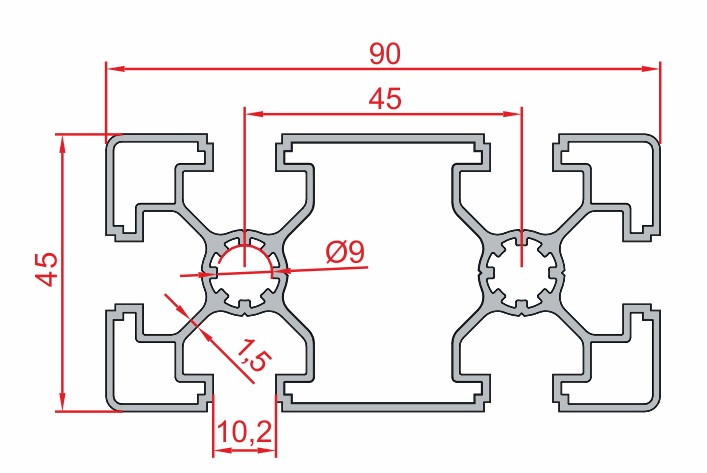

Technical data:

  • dimensions: 45x90 mm;
  • aluminium type: 6063;
  • one profile length: 6000 mm;
  • Ix : 59,21 cm4;
  • Iy : 15,21 cm4;
  • Wx: 13,15 cm3;
  • Wy: 6,76 cm3;
  • the relative weight: 1.90 kg / m.
