DUOTEK ATEX pump P100, flow-rate 110 lt/min., P160 (170 lt/min.) sertified EX II 2/2 GB c IIB T 1350 C
Equipment for use in areas where sometimes in normal operation formed combustible dust gases, vapors or mists and clouds in the air (EN 1127-1 sub 6.3), both external and internal area.
Pump features:
- Can work dry;
- May transport viscous liquids;
- It can transport creams and jelly, butter, marmalade;
- It can transport liquids with solid particles;
- Pumps required for the functioning of compressed air.
Are widely used in many applications, depending on the viscosity and debit indicators, honey, cream, mayonnaise, butter, tomato sauce, toothpastes, gels, oils, oils, glycerol, paper pulp, paint, SAE oil, varnish, etc. materials transportation.

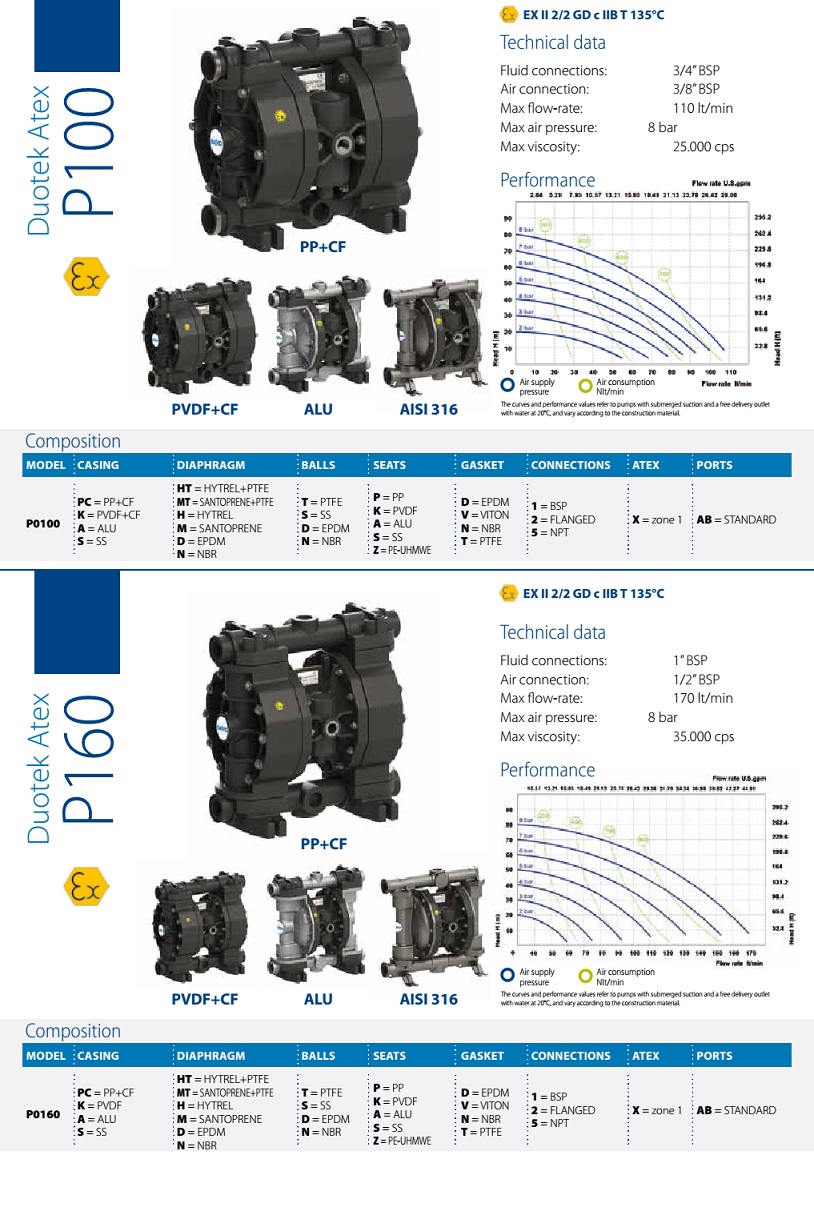

TECHNICAL DATA
| Parameter/model | DUOTEK ATEX P 100 | DUOTEK ATEX P 160 |
| Fluid connections: | 3/4''BSP | 1''BSP |
| Air connection, mm | 3/8''BSP | 1/2''BSP |
| Max. flow-rate, lt./ min.: | 110 | 170 |
| Max. air pressure, bar: | 8 | 8 |
| Max viscocity, cPs: | 25000 | 35000 |
